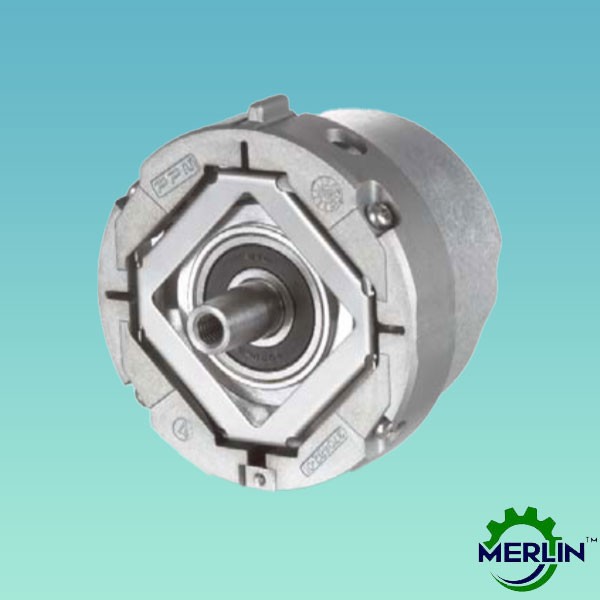

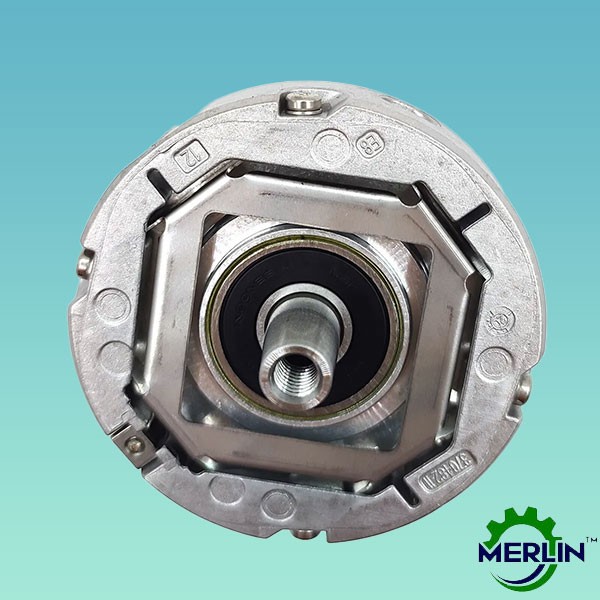

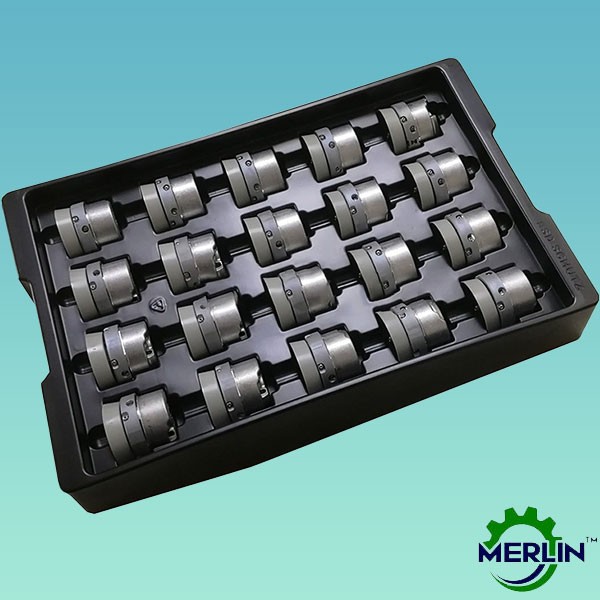

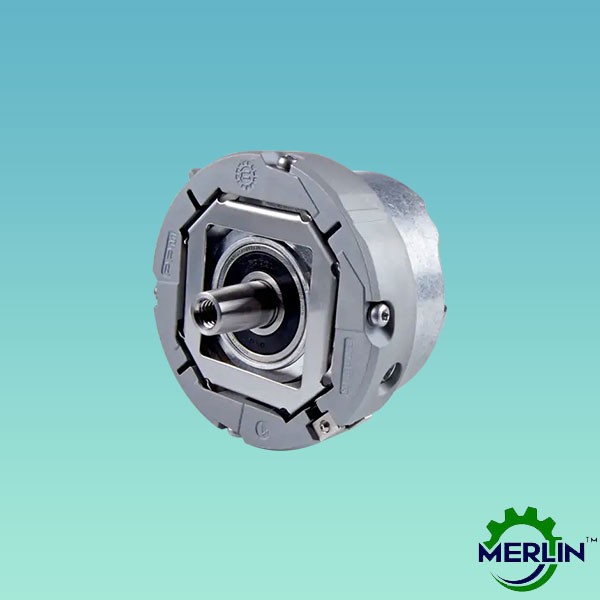

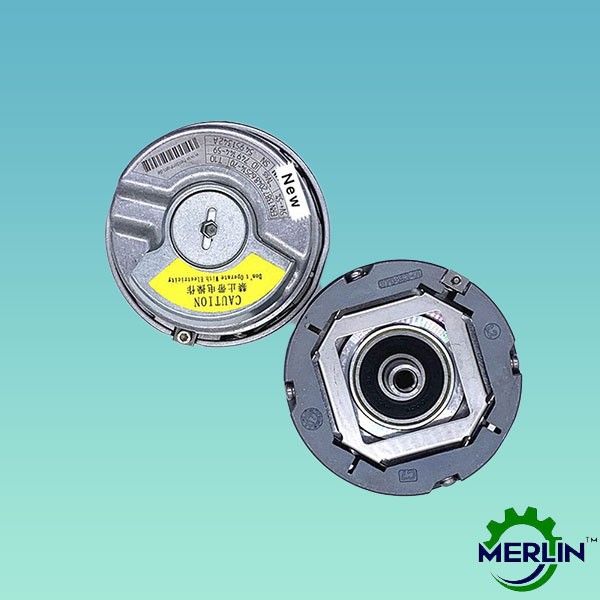

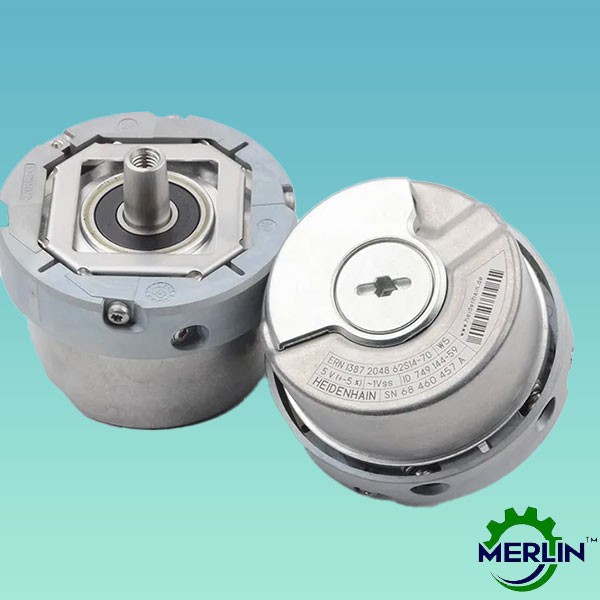

HEIDENHAIN Rotary Encoder ERN 1387 2048 62S14-70

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Certainly, here's a revised format for the information:

Specifications of the Incremental Rotary Encoder (HEIDENHAIN ERN 1387 2048 62S14-70):

• Mounting: Integral bearing for stator coupling
• Line Count: 2048
• Additional Circular-Scale Track: 1 sine and 1 cosine signal per revolution
• Output Signal: ~1Vpp
• Cutoff Frequency (-3dB): 210.00 kHz
• Power Supply: 5V (+-5%)
• Coupling Version: Expanding ring coupling for mating diameter 65mm
• Shaft: Taper shaft 1:10, functional diameter 9.25mm, back-off thread M10 and M6
• Degree of Protection: IP 40 (EN 60529)
• Operating Temperature: -40/+120 °C
• Electrical Connection: Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
• Pin Configuration: D319274
• Connecting Direction: Cable outlet for axial and radial use
