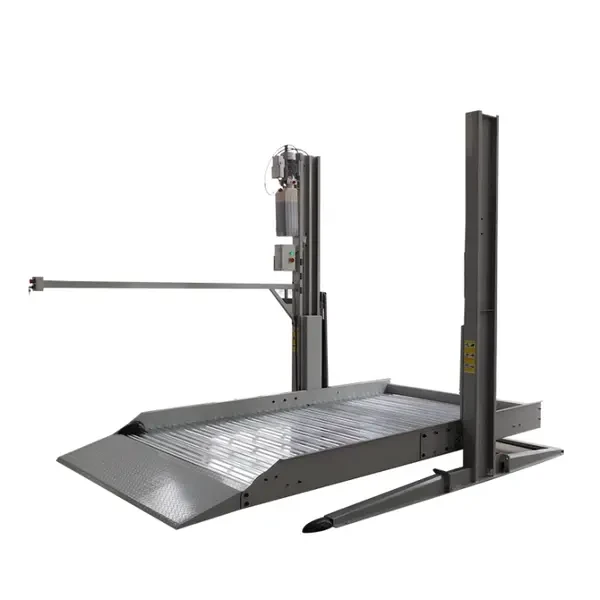

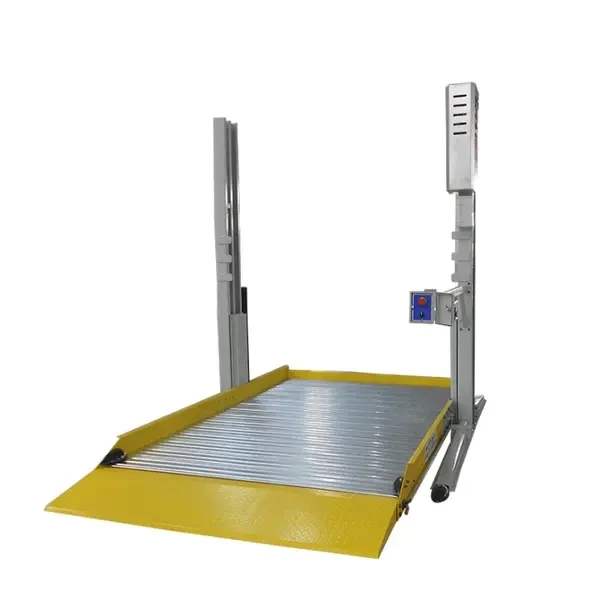

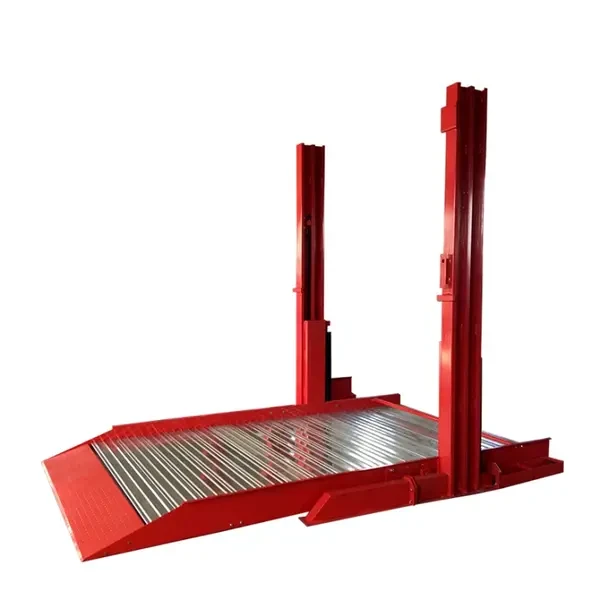

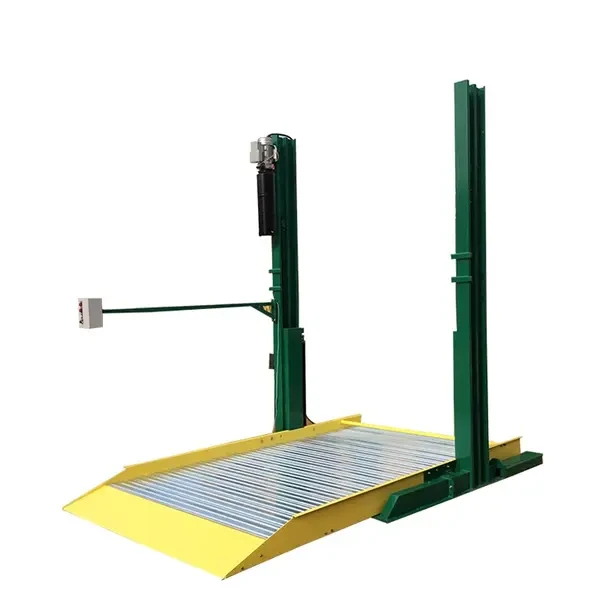

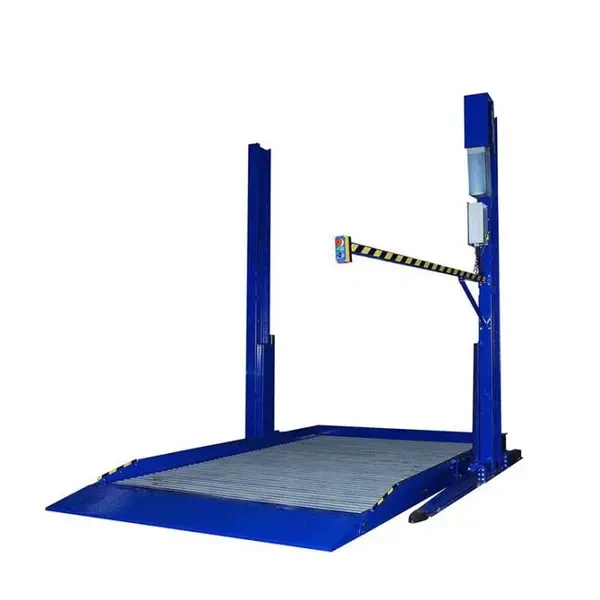

The 2-post car lift utilizes hydraulic propulsion, where a high-pressure hydraulic pump drives the car parking platform up and down. This hydraulic cylinder movement enables efficient parking. Once the parking platform is at ground level, the vehicle can easily enter or exit. We also provide tailored customization services to meet your specific needs.
Product Specifications:
Key Features
1. Easy and fast installation, simple operation, safe
and reliable, ultra low noise
2. Less space occupation,3.5m~4.1m ceiling height is
enough for parking 2 cars
3. Both suitable for home use and public use, beautiful
and fashionable in appearance.
4. Two stage dual-Cylinder lifting system, Hydraulic
direct driven, chain-balancing system.
5. Electric lock release system. Multi-levels
locking system (7 holes) for different adjustable parking heights, Operational
remote control.
6. High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.
Parameters:
Model |
HPL2321 |
HPL2721 |
HPL3221 |
Lifting
Capacity |
2.3 Tons |
2.7 Tons |
3.2 Tons |
Lifting Height |
2100 mm |
2100 mm |
2100 mm |
Drive Through
Width |
2100 mm |
2100 mm |
2100 mm |
Post Height |
3000 mm |
3500 mm |
3500 mm |
Weight |
1050 kg |
1150 kg |
1250 kg |
Product size |
4016*2565*3010mm |
4242*2565*3500mm |
4242*2565*3500mm |
Package Dimension |
3800*800*800mm |
3850*1000*970mm |
3850*1000*970mm |
Surface Finish |
Powder
Coating |
Powder
Coating |
Powder
Coating |
Operation mode |
Automatic (Push
Button) |
Automatic (Push
Button) |
Automatic (Push
Button) |
Rise/Drop
time |
50s/40s |
50s/40s |
50s/40s |
Motor
capacity |
2.2kw |
2.2kw |
2.2kw |
Cylinder |
Italy Aston
seal ring, double high pressure resin tubing, 100% no oil leakage |
||
Voltage (V) |
As per
customer local standard |
||
Test |
115% dynamic
load test and 150% static load test |
