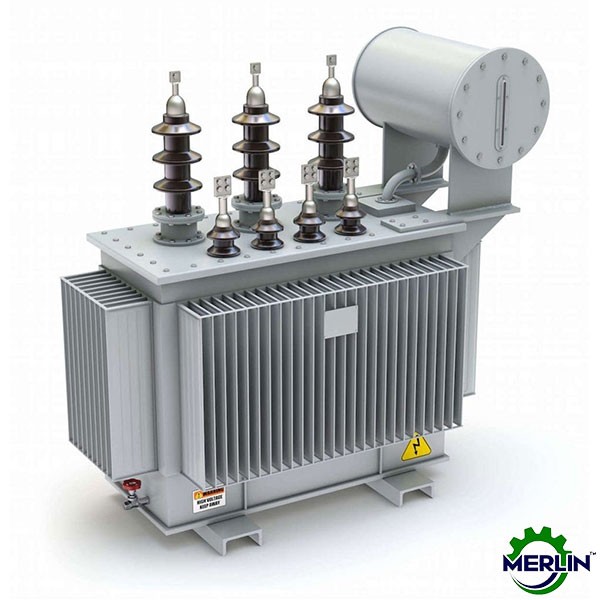

200 KVA Distribution Transformer
EMI Available
Model: 200 KVA
Brand:
1162300.00 1162300.00

200 KVA Distribution Transformer

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


Technical  Data  of TRANSFORMER (200 KVA)

Supply of 3 Phase oil immersed, naturally air cooled Transformer acc. to VDE/IEC/DIN/BSS standard with 3 HT Bushings and 4 LT Bushings arranged on tank top, conservator, oil level indicator, drain and filling valves, lifting lugs, with fast filling of oil in Transformer.

Rated  Capacity

200 KVA

Rated  Frequency

50Hz

Primary Rated  Voltage

11000V

Secondary Rated  Voltage

415V

Type of Cooling

ONAN

Bill

75 kv

Type of loading

Distribution

Vector  Group

DYN 11

Off-load  tap  changer

±2.5%,0%,-5%,-7.5%

Ambient  Temperature

40oC

Temperature  rise: - in  Oil

60oC (Max)

Temperature  rise: - in  COil

65oC (Max)

Star  point  brought Out  &  loadable  up to

100%

Max.  service  altitude

1000 Meters

Installation

Indoor/outdoor

No load  loss

420 Watt

Load  loss

2210 Watt

Impedance

4%

Copper Strip

Oriental Copper Co. Singapore.

Core

Japan/ Germany

Transformer oil

Savita, India.

Super  Enameled   Copper  wire

Gazi Wires /BRB Wire, Bangladesh
