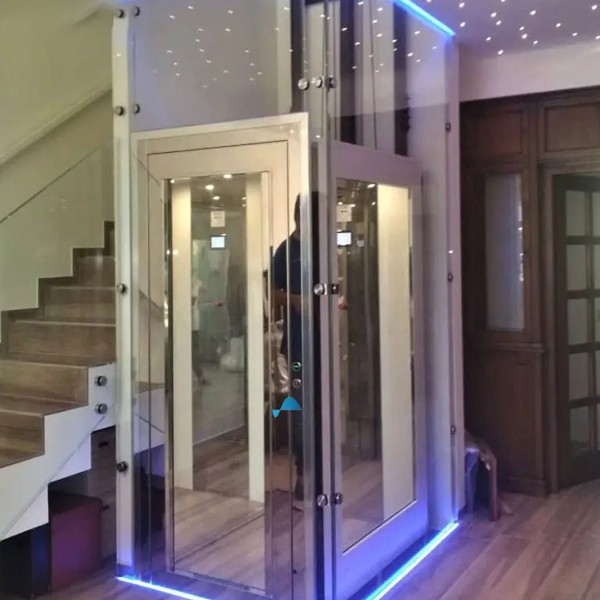

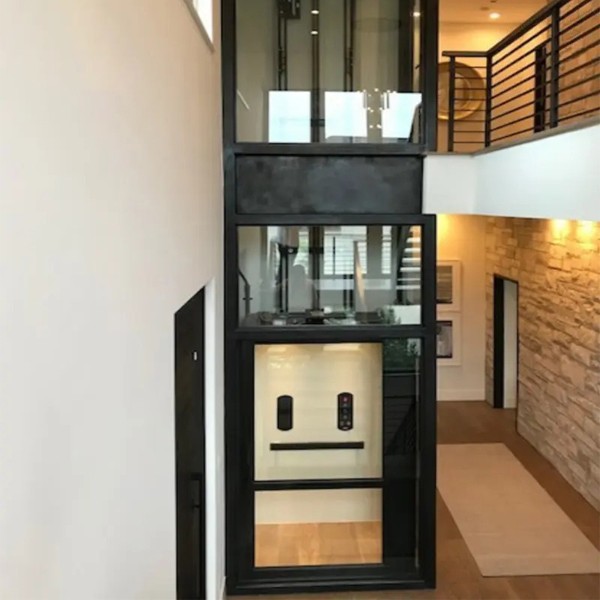

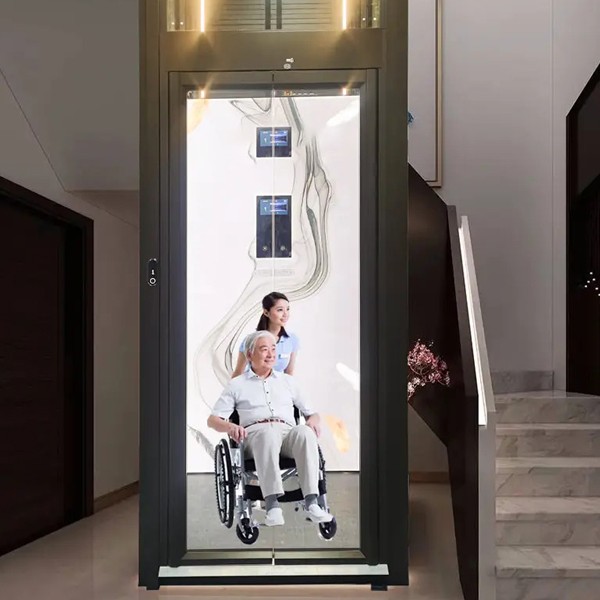

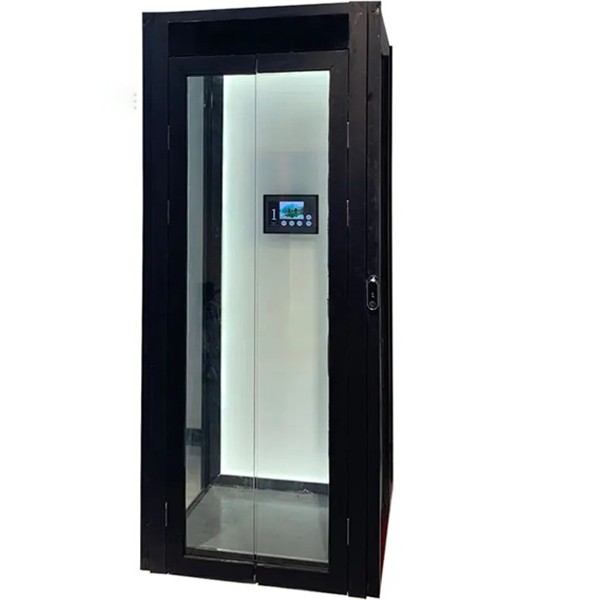

350 kg 4 Persons Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Villa Lift |
Country of Origin | Japan |
Shipment | China |
Capacity & Person | 350 kg / 4 Persons |
Speed | 0.40 M/Sec |
No of floors/stops | 3 Floors / 3 Stops |
Service Floor Name | G Floor to 2th Floor |
Traction Motor | HAYASHIMU |
Motor Capacity | Around 2.5 kW |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | MRL |
Rope & Guide Rail Type | Hydraulic |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 1500mm (W)x 1500mm (D) |
Total Travel | Approx. 11.09 m (approx.) |
Pit Depth | According to Space |
Overhead | According to Space |
Machine Room Height | According to Space |
3. CAR SPECIFICATION: | |
Car Internal Dimension | 1200 mm (W) x 1100 mm (D) x 2400mm (H) |
Car Design | Silver Stainless Steel Frame, Glass/Mirror |
Car Wall (Front Wall) | Silver Stainless Steel Frame, Glass/Mirror |
Car Wall (Side Wall) | Silver Stainless Steel Frame, Glass/Mirror |
Car Wall (Real Wall) | Silver Stainless Steel Frame, Glass/Mirror |
Car Ceiling | According to Design |
Car Floor | According to Design |
4. CAR DOOR SPECIFICATION: | |
Clear Door Opening | 800 mm (W) x 2100 mm (H) |
Type of Doors | Fully automatic 1 Panels Side Opening |
Car Door | Stainless Steel Frame, Glass |
Landing Design (Gr. Floor) | Stainless Steel Frame, Glass |
Landing Design (Others Floor) | Stainless Steel Frame, Glass |
Jamb; Ground Floor | Jamb will be Wide type with Transom Panel |
Jamb; Others Floor | Jamb will be Wide type with Transom Panel |
SAFETY DEVICES
- Pre-limit Switch: When the magnetic conduct fails to reduce landing speed in top and bottom floor, a pre limit switch (electromechanical switch) will help reduce its speed causing the lift to stop smoothly in the floor level.
- Final limit Switch: If the car travels above the top floor level or below bottom floor level, this switch cuts of the main power of motor and stops from further functioning.
- Battery: A trickle charged battery for 30 minutes for emergency light, alarm and intercom.
- Emergency unlocking: All landing doors provide key system with a special key for emergency unlocking for landing to evacuate as well as for the maintenance.
- Buffer: Energy absorbing spring buffer, mounted in pit, under the car and counterweight. If the car travels beyond the lowest floor or above the top floor, the buffer reduces the shock of traveling cabin & counterweight the frame at the bottom of the shaft
- Evacuation: During power failure the car will manually travel to the nearest floor (i.e. above or below) to land and the doors will open to facilitate evacuation of passengers.
- Phase reversal: If the phase change by any external subject such as PDB etc., for the safety of the lift & its passenger this protection switches off the main power supply to control the circuit and the lift halts its functions.
- Phase failure: If any phase of the main power supply is cut off (absent), the protection switch does not provide supply to control circuit and resists the lift from functioning.
- Door reversal feature: A pressure contact is a necessary material that comes with the door operation. If the edge of the door panel is blocked during closing or any items are kept between door panels, the doors re-open automatically.
- Maintenance control: Consist of 4 switches on the car: initiating switch, one up button, one down button and one stop button.
OPTIONAL FEATURES (Charges Apply)
- Auto Rescue Device (ARD)
- Auto Voltage Regulator (AVR)
- IC Card / Access Control System
- Remote Monitor Interface
- Remote Monitor System
- Visual Massage Display
- Dispatch Destination System (DDS)
- Auxiliary COP (Optional for wide car)
- Auto Rescue Device (ARD)
- Auto Voltage Regulator (AVR)
- IC Card / Access Control System
- Remote Monitor Interface
- Remote Monitor System
- Visual Massage Display
- Dispatch Destination System (DDS)
- Auxiliary COP (Optional for wide car)
