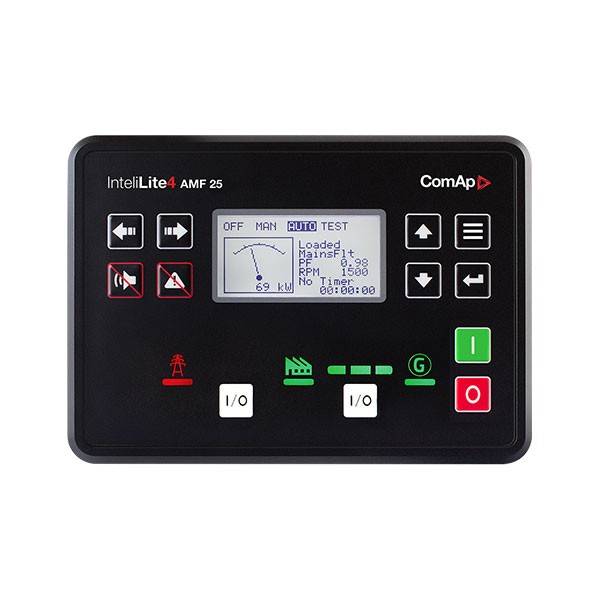

Comap InteliLite 4 AMF 25 | Single Gen-Set Controller!

Experience the cutting-edge InteliLite 4 AMF 25, a sophisticated single gen-set controller designed for standby and prime power applications. With its intuitive interface, flexibility, and straightforward installation, this controller provides ease of use. Tailor your power solution with multiple configuration options, ensuring efficient control and monitoring of your gen-sets, whether on-site or remotely.

• Easy configuration with InteliConfig
• Remote communication support
• Cyber security by design
• Easy troubleshooting
• Built-in PLC logic

The InteliLite 4 AMF 25 offers secure and flexible control for single-gen-sets in stand-by and prime power applications, ensuring ease of use and configuration. This advanced controller features connectivity and communication options for remote monitoring, allowing you to oversee your sites from anywhere.

Key Features:

1. Intuitive Setup and Monitoring:
• Utilize InteliConfig for flexible and efficient setup using ComAp’s PC configuration and monitoring tool.
• Built-in PLC logic and user-friendly PLC editor with drag-and-drop editing blocks.
2. Remote Connectivity:
• AirGate 2.0 facilitates easy remote connection to your equipment without IP address concerns.
• WebSupervisor enables remote control and monitoring of gen-set operations through a cloud-based fleet management tool.
3. Security Features:
• User-defined protections and setpoints, alongside default protection.
• High-level security features to safeguard your business and data.
4. Advanced Monitoring and Troubleshooting:
• Event-based history with 350 records for quick troubleshooting.
• True Root Mean Square measurement for more precise monitoring.
5. Versatile Platform:
• Dual standby and prime power application control in one unit with backlit symbols.
• Integrated communication and control ports (USB, USB host, CAN, RS485).
• Two slots for plug-in modules for 4G, Ethernet, RS232/485 connections, additional inputs/outputs.
6. Upgraded Hardware:
• Improved hardware platform with switchable analogue inputs and 5V reference output.
• CAN module extensions.
7. Energy Efficiency and Management:
• Zero power mode to prevent battery drainage in prime power applications.
• Load shedding for ensuring critical loads run during power shortages.
• Dummy load management to prevent genset unloaded operation.
8. Additional Features:
• Multi ECU support, Modbus register mapping, multi-language support.
• Geofencing for unit tracking and theft prevention.
• Dual starter support, pulse counters, and compatibility with remote displays.
9. Extreme Temperature Version:
• Available in a version designed for extremely low temperatures (Order Code: IL4AMF25BLA).
10. User-Friendly Configurations:

• Secure user management with 5 unique user accounts.
• Multi-purpose maintenance timers and exercise timers with a backup RTC battery.

11. Software Integration Option:

• Option to integrate InteliSCADA for creating and monitoring complex SCADA systems.

Explore the unparalleled capabilities of the InteliLite 4 AMF 25, a controller that goes beyond expectations, even in the most demanding conditions.
