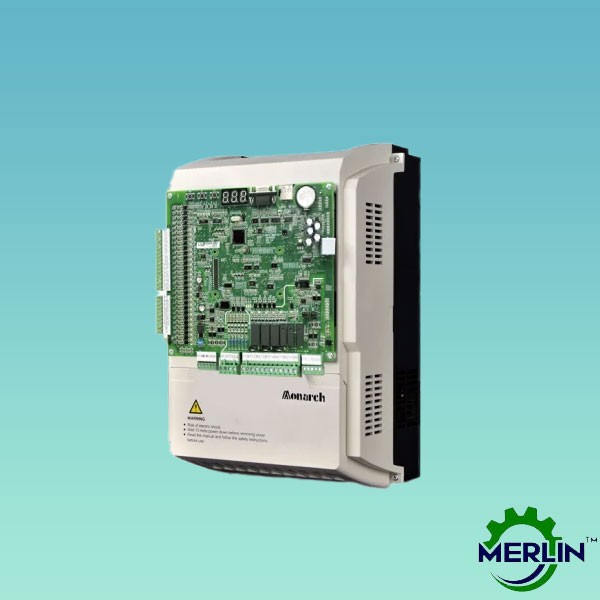

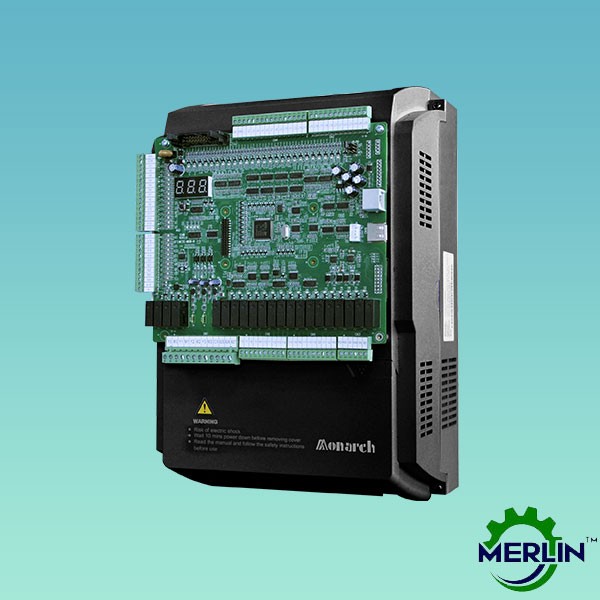

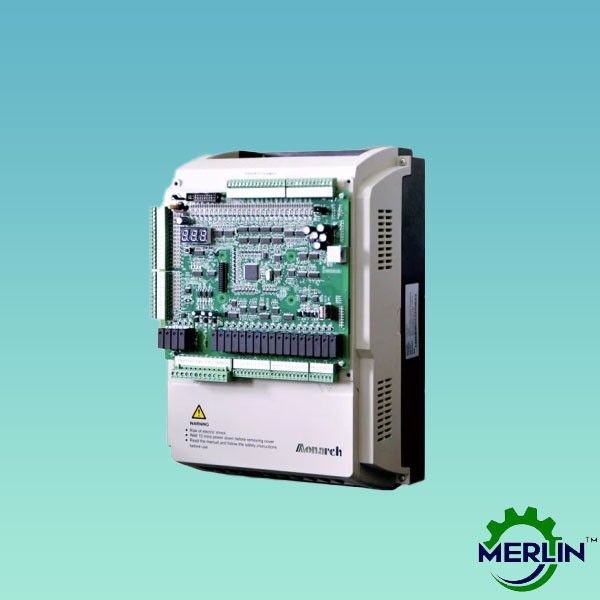

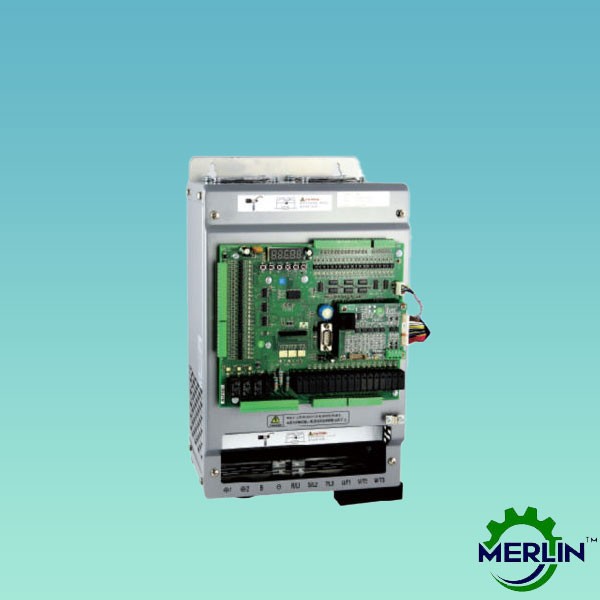

NICE1000new Integrated Solution – Elevator Controller with AC Drive

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

An integrated elevator controller featuring parallel connection capabilities:

• Standard configuration for 8 floors, expandable to 16 floors
• Maximum speed capability of 1.5 meters per second
• Utilizes duplex onboard group control with CANbus serial communication
• Equipped with a double-digit, 7-segment display via parallel connection
• Offers selectable door control modes: manual, semi-automatic, automatic
• Includes selectable fireman operation functionality
• Compatible with both synchronous (PM gearless machine) and asynchronous (geared machine) systems
• Ready for single-phase 220 V UPS rescue mode operation, complete with automatic light load search
• Provides comprehensive trip diagnostics for efficient maintenance
• Output frequency range from 0.0 to 100.0 Hz
• Features static auto-tuning for both asynchronous and synchronous machines (without brake opening)
