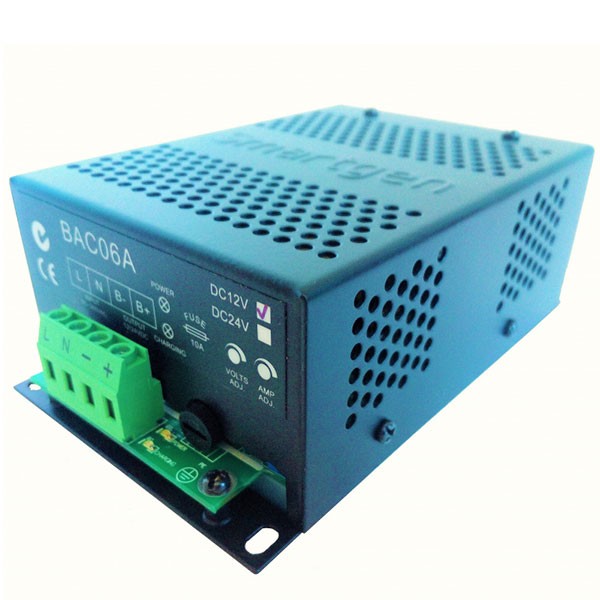

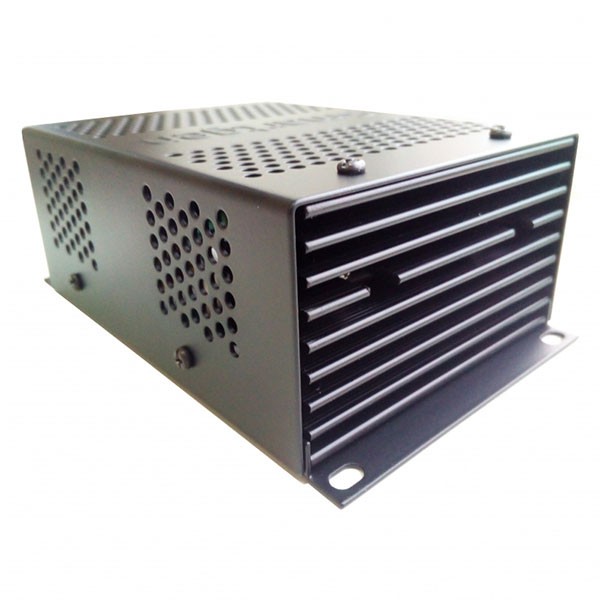

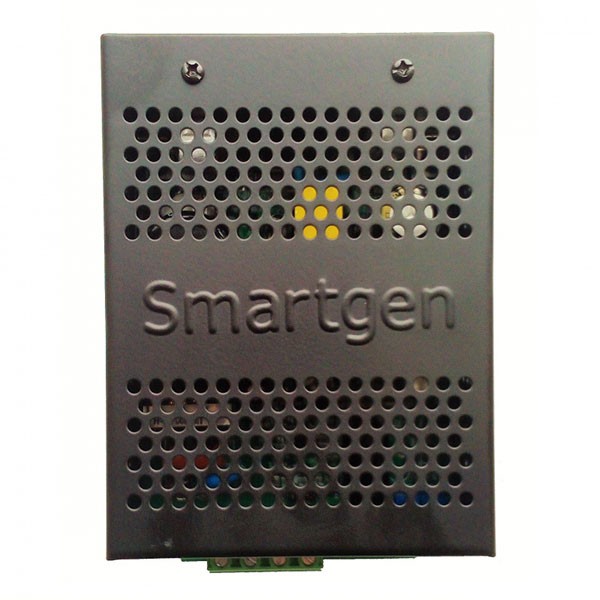

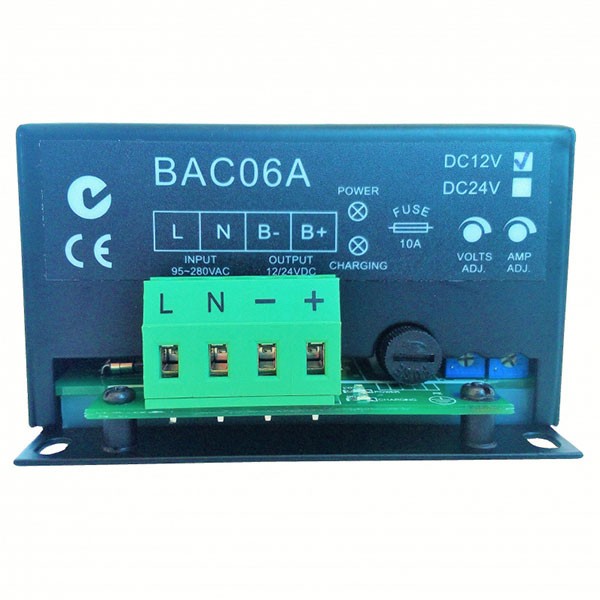

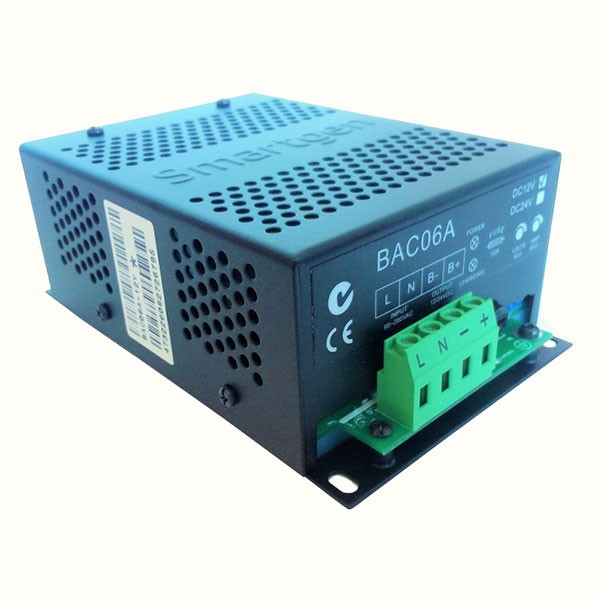

SmartGen BAC06A-12V | Generator Battery Charger!

Technical Specifications:

• Battery Voltage: 12V/24V
• Max. Charging Current: 6A/3A
• Rated Input Voltage: (100~240)V
• Max. Input Voltage Range: (90~280)V
• AC Input Frequency: (50/60)Hz
• Max. Input Current: 2A
• No-Load Power Consumption: <3W
• Operating Mode: Two segments
• Maximum Efficiency: 83%/85%
• Operating Temperature: (-30~+55)℃
• Storage Temperature: (-40~+85)℃
• Net Weight: 0.65 kg
• Case Dimensions: 1439655 mm

Product Overview: The BAC06 series switching battery charger utilizes cutting-edge switch power components, specifically designed to charge lead-acid starting batteries based on their properties. This charger is ideal for lead-acid battery float charging. The 12V charger supports a maximum charge current of 6A, while the 24V charger supports a maximum charge current of 3A.

Performance and Characteristics:

1. Switching power structure design, wide AC voltage input range, compact size, lightweight, and high efficiency.
2. Utilizes a two-stage charging method (initially constant current, followed by constant voltage) to fully address lead-acid battery charging properties, preventing overcharging and maximizing battery lifespan.
3. Equipped with short circuit and reverse connection protection.
4. Charging voltage and current can be adjusted via on-site potentiometer.
5. LED display indicating power and charging status.
6. BAV06A designed for horizontal installation, ensuring easy setup.
7. BAC06V designed for vertical installation, significantly reducing installation dimensions.
