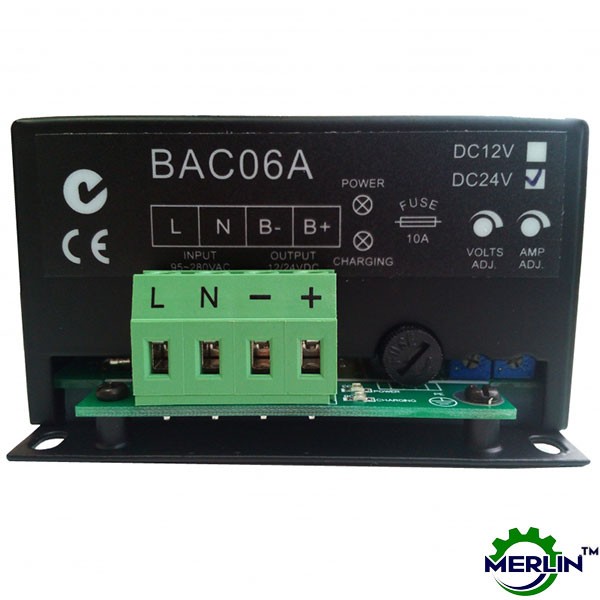

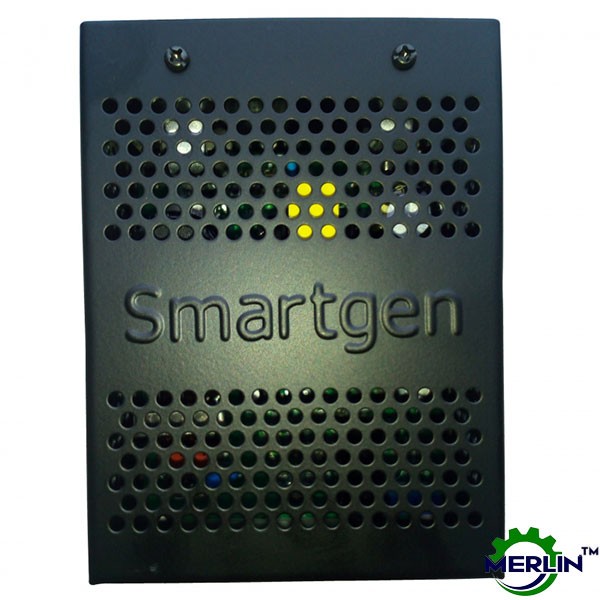

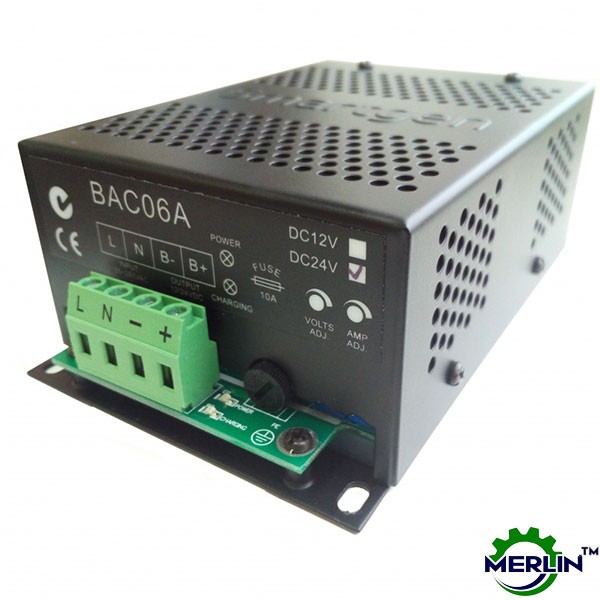

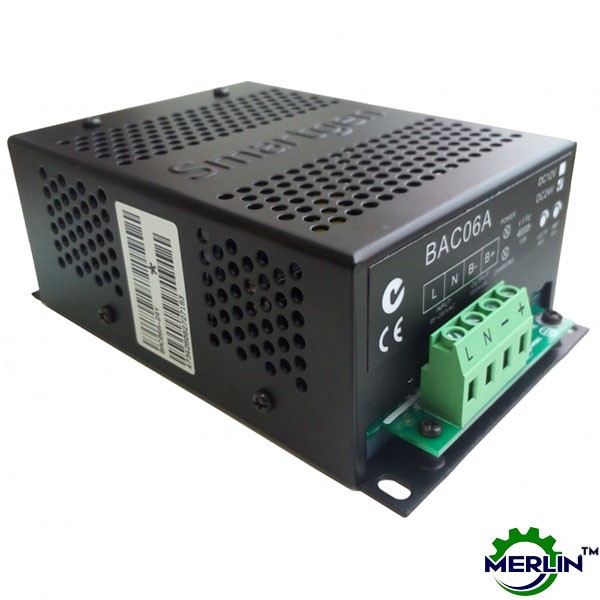

SmartGen BAC06A-24V | Generator Battery Charger!

Technical Specifications:

• Battery Voltage: 12V/24V
• Max. Charging Current: 6A/3A
• Rated Input Voltage: (100~240)V
• Max. Input Voltage Range: (90~280)V
• AC Input Frequency: (50/60)Hz
• Max. Input Current: 2A
• No-Load Power Consumption: <3W
• Operating Mode: Two segments
• Maximum Efficiency: 83%/85%
• Operating Temperature: (-30~+55)℃
• Storage Temperature: (-40~+85)℃
• Net Weight: 0.65 kg
• Case Dimensions: 1439655 mm

Product Overview: The BAC06 series switching battery charger incorporates advanced switch power components, tailored for charging lead-acid starting batteries based on their characteristics. This charger is optimized for lead-acid battery float charging. The 12V charger supports a maximum charge current of 6A, while the 24V charger supports a maximum charge current of 3A.

Performance and Characteristics:

1. Utilizes a switching power structure design, offering a wide range of AC voltage input, compact size, lightweight, and high efficiency.
2. Employs a two-stage charging method (initially constant current and then constant voltage) that fully considers the charging properties of lead-acid batteries, preventing overcharging and extending battery life to the fullest.
3. Equipped with short circuit and reverse connection protection.
4. Enables adjustment of charging voltage and current via on-site potentiometer settings.
5. Features LED display indicators for power and charging status.
6. BAV06A designed for easy horizontal installation.
7. BAC06V designed for vertical installation, minimizing installation dimensions.
