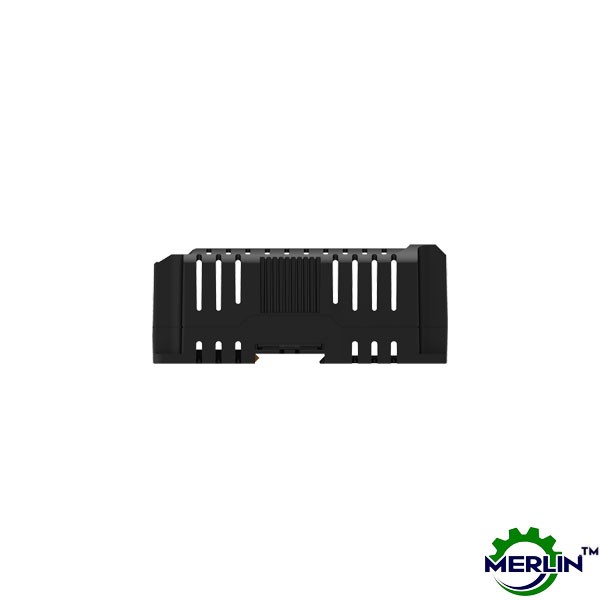

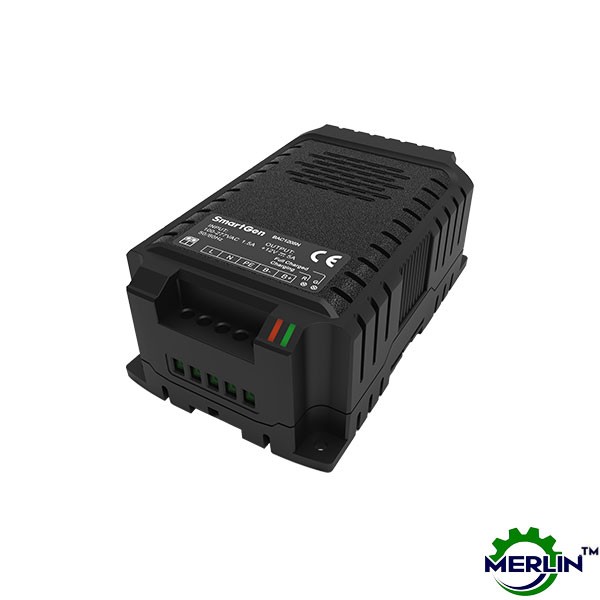

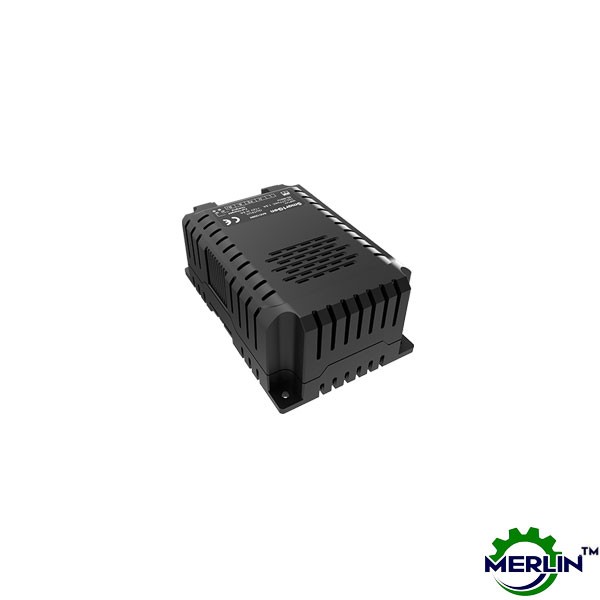

SmartGen BAC2403N | Generator Battery Charger

Technical Specifications:

• Battery Voltage: 24V
• Max. Charging Current: 3A
• Rated Input Voltage: AC(100~277)V
• Max. Input Voltage Range: AC(90~305)V
• AC Input Frequency: 50/60Hz
• Max. Input Current: 1.7A
• No-Load Power Consumption: <3W
• Operating Mode: Two segments
• Maximum Efficiency: 87%
• Operating Temperature: (-30~+55)℃
• Storage Temperature: (-40~+85)℃
• Net Weight: 0.45 kg
• Case Dimensions: 1499561 mm

Product Overview: The BAC1205N/2403N battery charger, incorporating cutting-edge switch power components, is specifically engineered for charging lead-acid starting batteries according to their properties. This charger is ideal for providing long-term supplementary charge (float charge) to lead-acid batteries.

Performance and Characteristics: This product possesses the following characteristics:

1. Designed with a switching power structure, offering a wide range of AC voltage input, compact size, lightweight, and high efficiency.
2. Utilizes a two-stage charging method (initially constant current, followed by constant voltage) that fully considers the charging properties of lead-acid batteries, preventing overcharging and maximizing battery lifespan.
3. Equipped with short circuit and reverse connection protection.
4. Suitable for charging 12V or 24V batteries with corresponding models BAC1205N or BAC2403N.
5. Features LED display indicators for charging and full charged status.
6. Offers easy installation via guide-rail way or screw mounting installation methods.
7. Built-in terminals housed in a flame retardant plastic shell for added safety.
