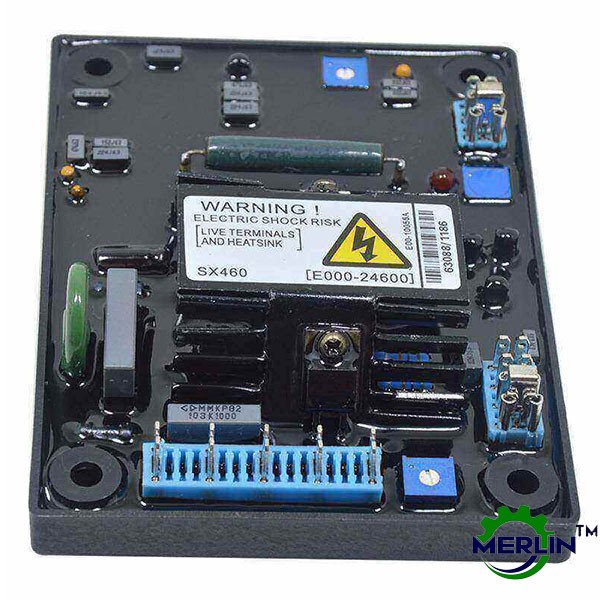

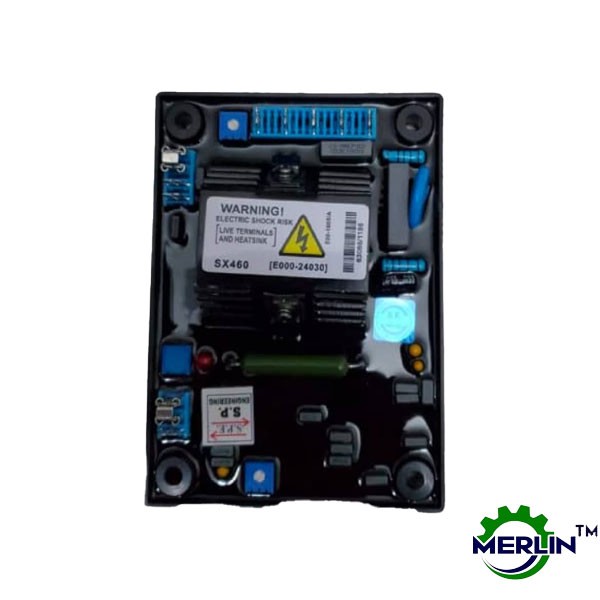

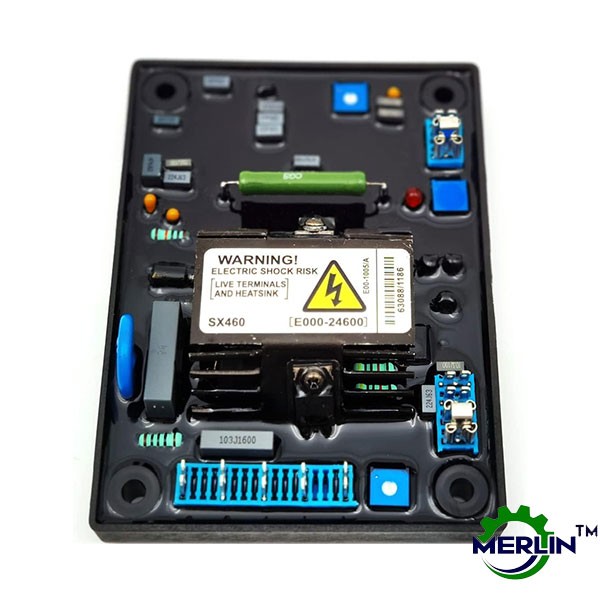

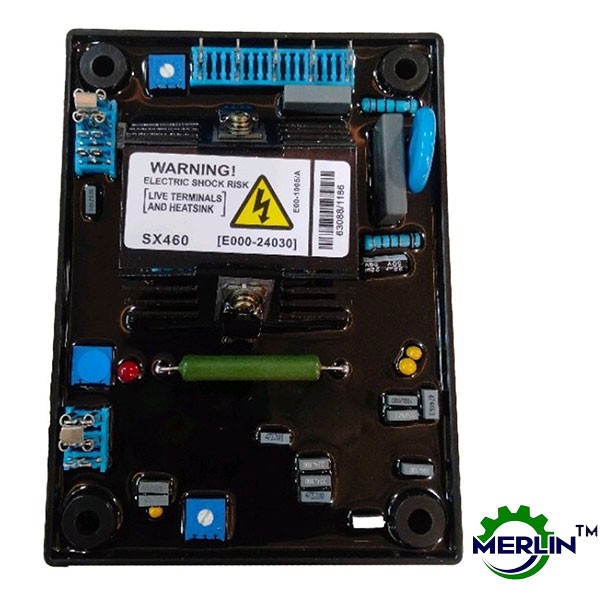

SX460 Automatic Voltage Regulator (AVR) | Stamford Generator Set Spare Parts

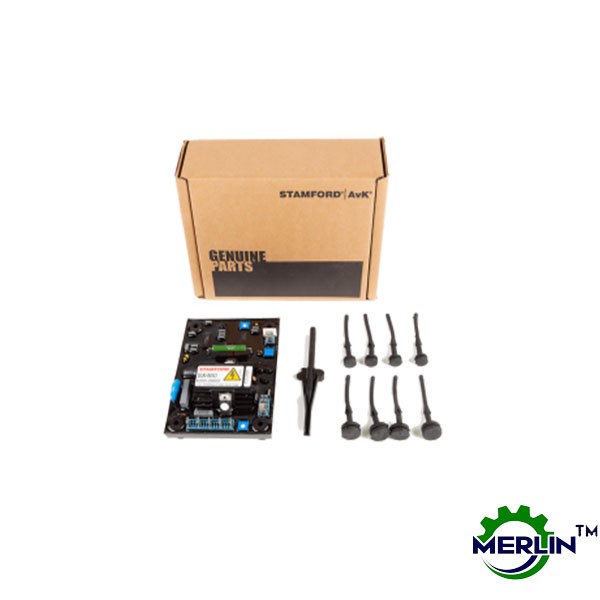

The SX460 has become obsolete and has been replaced by the AS440. For detailed information, kindly get in touch with your local authorized STAMFORD | AvK Parts and Service dealer. Previously employed with our UC22 and UC27 alternators, the SX460 was an analog, 2-phase sensing, self-excited automatic voltage regulator (AVR). It operated by connecting the AVR with the main stator windings and the exciter field windings to achieve closed-loop control of the output voltage. To ensure authenticity, purchase the replacement AVR, AS440, exclusively from an authorized STAMFORD.
Description:
- CUMMINS is
a registered trademark of Cummins, Inc.
- SX460 AVR -
Automatic Voltage Regulator - Exact Generic Replacement!
- INPUT:
Voltage: Jumper selectable 95-132V ac or 190-264V ac, Frequency: 50-60 Hz
nominal, Phase: 1
- OUTPUT:
Voltage: Max 90V dc at 207V ac input, Current: Continuous 4 A dc, Intermittent
6 A for 10 secs, Resistance: 15 ohms minimum
- Regulation: +/-1.0% * Thermal drift: 0.05% per deg. C change in AVR ambient
- Unit power dissipation: 10 watts maximum - Build up voltage:4 Volts @ AVR terminals.
