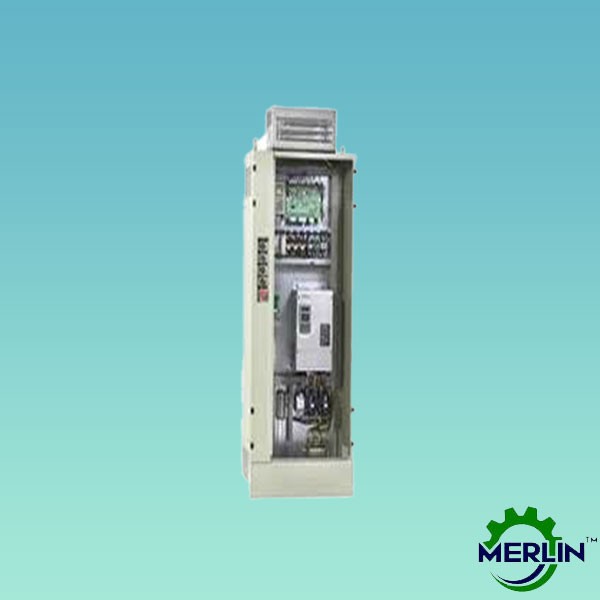

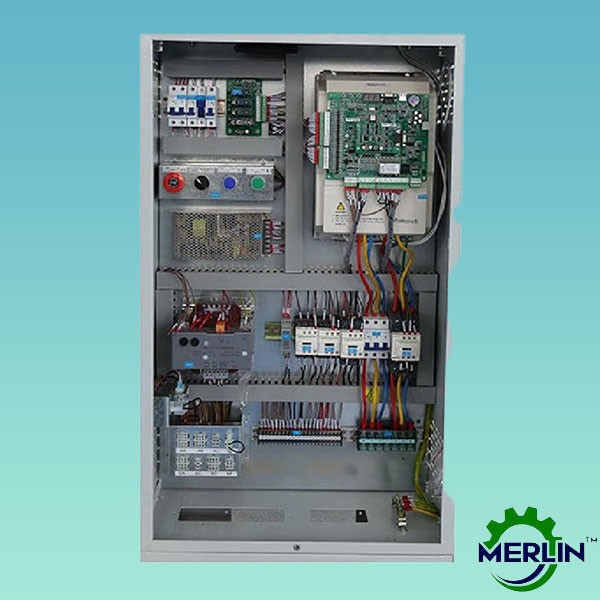

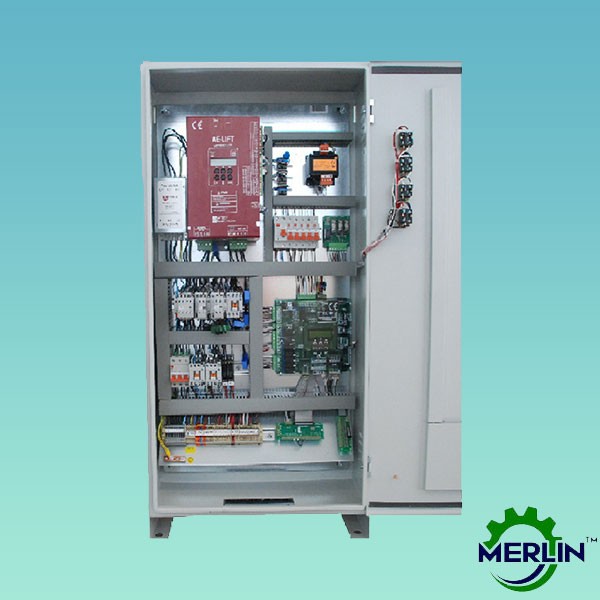

VVVF Control Cabinet | 800 MM

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Features of our VVVF escalator control cabinet:

1. Incorporates our self-developed ES.01 escalator controller and iAstar AS500 general inverter, ensuring smooth elevator starts and energy-efficient operation.
2. Enables precise adjustment of escalator idle speeds, enhancing operational flexibility through our control system.
3. Simplifies escalator operation with humanized functions like error reporting, remote monitoring, I/O extension, and handheld operator compatibility.
4. Built with multiple protective functions, ensuring the safe and reliable operation of the escalator.

Technical Specifications:

• Power Supply: AC380V~460V, 50/60Hz, 3 phase
• Power Range: 5.5kW~22kW
• Main Controller: STEP ES.01/A
• Driver: STEP AS500 general inverter
• Safety Standard: GB16899/EN115
• Environment Temperature: -10°C~45°C
• Operation Mode: Full VVVF conversion, dual mode conversion (optional)
• Cabinet Color: Dark gray or customizable
• Standard VVVF Escalator Control Cabinet Dimension (mm): 800×500×250 (Full VVVF conversion)
• IP Code: IP21

Interface Description:

• Power Interface: 16mm2 crimp terminal
• Adapted Motor: AC asynchronous motor
• Brake Voltage: DC110/AC220V; Rated current ≤3A; Interface: 2.5mm2 crimp terminal
• Light Voltage: AC220V
• Cable Interface: 2.5mm2 crimp terminal
