DSE 8610 MKII Synchronising & Load Sharing Auto Start Control Module!

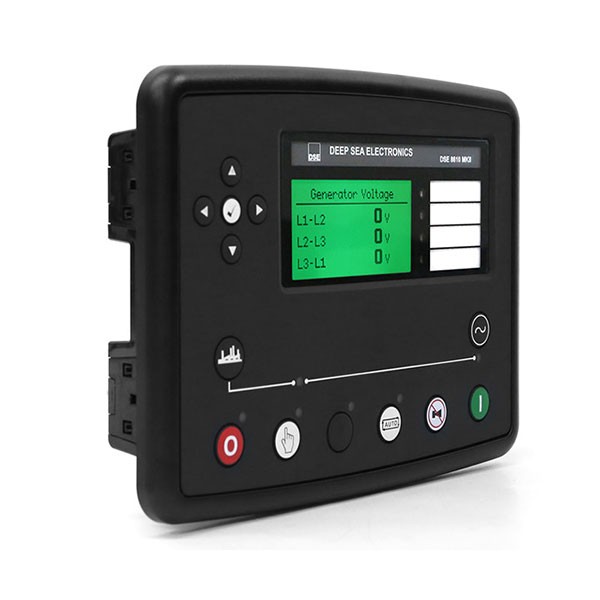

The DSE 8610 DSE8610MKII Generator Controller is a user-friendly multi-generator load-share system, designed to synchronize up to 32 generators, including both electronic and non-electronic engines.

The Deep Sea Generator Controller DSE8610 DSE8610MKII monitors generator performance, indicating operational status and fault conditions. It can automatically start or stop the engine based on load demand or fault conditions.

System alarms are displayed on the LCD screen, which offers multiple language options, and are also indicated by illuminated LEDs and an audible sounder.

The event log records up to 250 events to facilitate easy maintenance. The controller includes a wide range of fixed and flexible monitoring, metering, and protection features, along with extensive communication and system expansion options.

Using the DSE PC Configuration Suite Software, users can easily adjust operational sequences, timers, and alarms. With all communication ports capable of being active simultaneously, the Deep Sea 8610 Generator Controller is ideal for a wide variety of demanding load-share applications.

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3")

WEIGHT
0.88kg

PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage

GENERATOR & BUS

VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
25 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

BUILT-IN GOVERNOR CONTROL

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
