DSE 7310 MKII | Auto Start Control Module

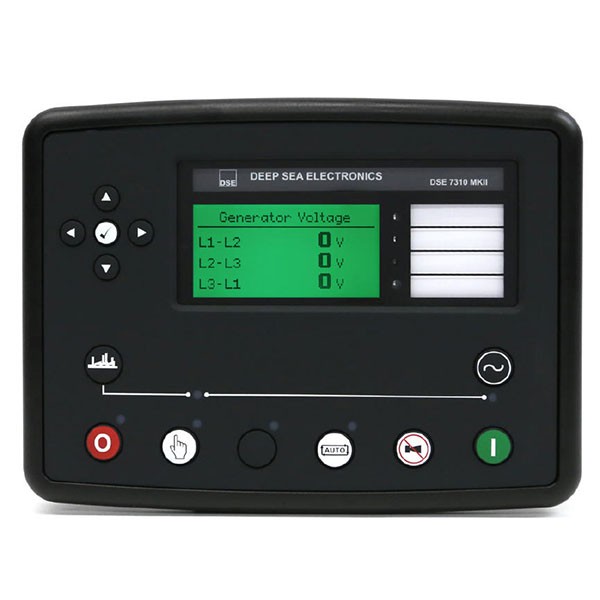

The DSE7310 MKII is a state-of-the-art auto start genset control module, introducing a high level of sophistication with an array of new features. It maintains the user-friendly DSE format and is adaptable to a wide range of single, diesel, or gas Gen-set applications.

Equipped with a new Dual Core main processor and expanded memory, this module delivers enhanced processing power for quicker responses in demanding applications. It also extends its functionality by offering data logging capabilities.

This module is capable of monitoring a wide array of engine parameters and provides warnings, shutdown alerts, and engine status information through the back-lit LCD screen, illuminated LED indicators, remote PC access, and SMS text alerts when paired with an external communication device.

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7310-03 - 7310 MKII Autostart Control Module

PRODUCT SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

510 mA at 12 V, 240 mA at 24 V

MAXIMUM STANDBY CURRENT

330 mA at 12 V, 160 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

25 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)

CONNECTION DIAGRAM
