HLC-19-1 Passenger Elevator
EMI Available
Model: HLC-19-1
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

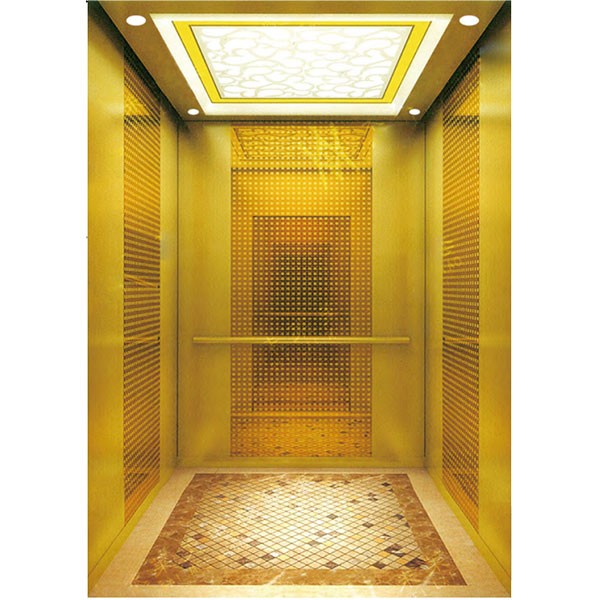

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-19-1 450kg 6 Passenger Elevator

Elevators have become an essential part of modern buildings, making vertical transportation safe, efficient, and convenient. Among the many options available, the HLC-2019-1 450kg 6 Passenger Elevator stands out as a reliable and innovative choice for commercial and residential spaces. In this blog, we'll explore the key features and benefits of this remarkable elevator model.

    Space-Saving Design

      The HLC-2019-1 Passenger Elevator is designed to maximize space efficiency. With a 450kg capacity and the ability to accommodate 6 passengers, it's an ideal choice for mid-sized buildings and high-traffic areas. This elevator is engineered to make the most of available space while ensuring passenger comfort and safety.

        Cutting-Edge Technology

          The HLC-19-1 Elevator incorporates the latest elevator technology, offering smooth and reliable performance. It features advanced control systems, ensuring quick response times and precise floor leveling. This technology not only improves passenger experience but also reduces energy consumption, making it an environmentally friendly choice.

            Safety First

              Safety is a top priority in elevator design, and the HLC-2019-1 Passenger Elevator doesn't disappoint. It comes equipped with a range of safety features, including emergency stop buttons, overload protection, and automatic door reopening mechanisms. Additionally, the elevator complies with all industry safety standards, giving passengers peace of mind during every ride.

                Sleek Aesthetics

                  This elevator model blends seamlessly with the architectural aesthetics of your building. Its stylish design and customizable interior options allow you to match it to your building's decor. Whether you want a modern, minimalist look or a more classic style, the HLC-2019-1 Elevator can be tailored to meet your design preferences.

                    Low Maintenance

                      The HLC-2019-1 Elevator is designed with durability in mind. Its low-maintenance features reduce the need for frequent repairs and maintenance, saving both time and money in the long run. The use of high-quality materials and components ensures that this elevator will continue to perform at its best for years to come.

                        Accessibility for All

                          Inclusivity is essential in modern architecture. The HLC-2019-1 Elevator is equipped with accessibility features to ensure that everyone, including individuals with disabilities, can comfortably use it. These features include braille buttons, audio announcements, and handrails for added safety.

                            Energy Efficiency

                              Energy conservation is crucial in today's eco-conscious world. The HLC-2019-1 Elevator is designed to be energy-efficient, with features like LED lighting, standby mode, and regenerative drives that help reduce energy consumption and operating costs.

                              Conclusion

                              The HLC-19-1 450kg 6 Passenger Elevator is a smart and practical choice for buildings of various sizes. With its space-saving design, cutting-edge technology, safety features, aesthetics, low maintenance requirements, and energy efficiency, it offers a well-rounded package for architects, building owners, and passengers alike.

                              If you're looking to enhance your building's vertical transportation while prioritizing safety, style, and sustainability, the HLC-2019-1 Elevator is a top contender. Elevate your building with this exceptional elevator model and experience the difference it can make in your space.
