HLC-19-16 Passenger Elevator
EMI Available
Model: HLC-19-16
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

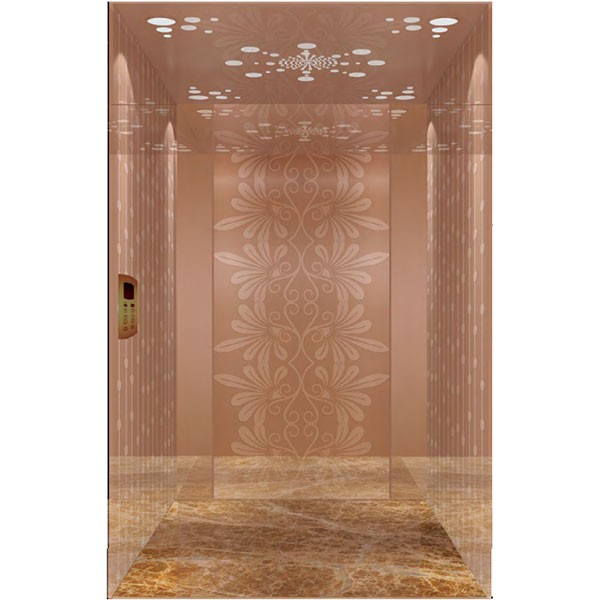

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


HLC-19-16 630kg 8 Passenger Elevator: Elevating Efficiency and Comfort

Elevators are an integral part of modern life, especially in tall buildings, making vertical transportation more efficient and accessible. Elevator technology has advanced significantly over the years, and the HLC-2019-16 630kg 8 Passenger Elevator is a prime example of how innovation has shaped the future of vertical mobility. In this blog, we will explore the exceptional features and benefits of this outstanding elevator system.

Efficiency and Capacity

The HLC-19-16 elevator is designed to provide optimal efficiency while accommodating a capacity of 630kg, which can comfortably transport up to 8 passengers. This elevator is suitable for a wide range of applications, from residential buildings to commercial spaces.

  1. Swift operation: The HLC-2019-16 elevator is equipped with advanced motor technology and precise control systems that allow it to move swiftly between floors. This results in reduced wait times and enhanced transportation efficiency within your building.
  2. Energy-efficient design: Energy-efficient components and technologies are integrated into the HLC-19-16 elevator to reduce operational costs and minimize its environmental impact, benefiting both building owners and the environment.

Safety and Comfort

Safety is a paramount concern in elevator design, and the HLC-19-16 elevator prioritizes passenger well-being by incorporating various safety features.

  1. Smooth and stable ride: The elevator's advanced suspension and shock absorption systems ensure a smooth and stable ride, with minimal vibrations and noise. Passengers can enjoy a comfortable and pleasant journey.
  2. Emergency features: The HLC-19-16 elevator is equipped with essential safety features, including emergency brakes, fire-resistant materials, and a reliable battery backup system. These features provide peace of mind to passengers in unforeseen circumstances.

Customization and Design

One of the most appealing aspects of the HLC-19-16 elevator is its flexibility in design and customization to match the aesthetics of the building.

  1. Material and design options: Building owners and architects can choose from a range of interior finish options, including elegant wood paneling, sleek stainless steel, or other customizable materials. This allows the elevator to seamlessly blend with the building's overall design and ambiance.
  2. Control panel options: The control panel can be customized to match the interior design, providing a modern and sophisticated touch to the elevator.

Conclusion

The HLC-19-16 630kg 8 Passenger Elevator represents a significant advancement in elevator technology. Whether it's a residential building, a commercial space, or a mixed-use development, this elevator system offers a winning combination of speed, safety, and style. As buildings continue to rise in height and complexity, elevators like the HLC-2019-16 become essential for ensuring efficient vertical transportation, ultimately improving the quality of life for residents and visitors. Whether you prioritize efficiency, safety, or design, the HLC-2019-16 elevator system surpasses expectations, making it a valuable addition to any building's infrastructure. Elevate your building's transportation system and experience the future of vertical mobility today.
