HLC-19-17 Passenger Elevator
EMI Available
Model: HLC-19-17
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

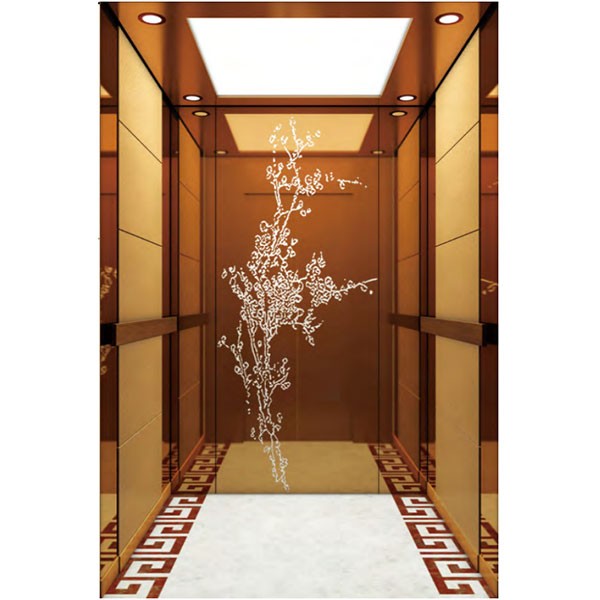

Car Design

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, concave gold, titanium, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Reaching New Heights of Excellence: The HLC-19-17 800kg 10 Passenger Elevator

Elevators have become an essential component of modern urban life, allowing efficient vertical transportation in high-rise buildings. As buildings continue to reach new heights, elevator technology has advanced to meet the growing demands for safety, efficiency, and comfort. The HLC-2019-17 800kg 10 Passenger Elevator is an outstanding example of innovation, designed to cater to the evolving needs of both passengers and building owners. In this blog, we will delve into the remarkable features and benefits of this exceptional elevator system.

Efficiency and Capacity

The HLC-19-17 elevator is designed to offer optimal efficiency and boasts a substantial load capacity of 800kg, accommodating up to 10 passengers with ease. This elevator is ideal for various applications, including commercial, residential, and mixed-use buildings.

  1. Swift operation: The HLC-19-17 elevator is equipped with advanced motor technology and precise control systems, allowing for swift vertical movement. Reduced wait times and smooth transitions between floors enhance overall transportation efficiency.
  2. Energy-efficient design: The elevator incorporates energy-efficient components and technologies to reduce operational costs and minimize its environmental footprint. This contributes to sustainability and lowers energy consumption for building owners.

Safety and Comfort

Safety is paramount in elevator design, and the HLC-19-17 elevator is equipped with numerous features to ensure the safety and comfort of all passengers.

  1. Smooth and stable ride: The elevator's advanced suspension and shock absorption systems guarantee a smooth and stable ride with minimal vibrations and noise, providing a comfortable and enjoyable journey.
  2. Emergency features: Essential safety features, such as emergency brakes, fire-resistant materials, and a reliable battery backup system, offer passengers peace of mind in unforeseen circumstances.

Customization and Design

One of the most appealing aspects of the HLC-19-17 elevator is its flexibility in design and customization to match the aesthetics of the building.

  1. Material and design options: Building owners and architects can select from a range of interior finish options, including elegant wood paneling, sleek stainless steel, or other customizable materials. This allows the elevator to seamlessly blend with the building's overall design and ambiance.
  2. Control panel options: The control panel can be customized to match the interior design, adding a modern and sophisticated touch to the elevator.

Conclusion

The HLC-19-17 800kg 10 Passenger Elevator represents a significant step forward in elevator technology. As buildings continue to grow in complexity and height, elevators like the HLC-19-17 are essential for ensuring efficient vertical transportation. Whether in commercial spaces, residential complexes, or mixed-use developments, this elevator system excels in delivering speed, safety, and style. Whether you prioritize efficiency, safety, or design, the HLC-19-17 elevator system exceeds expectations, making it a valuable addition to any building's infrastructure. Elevate your building's transportation system and experience the future of vertical mobility today.
