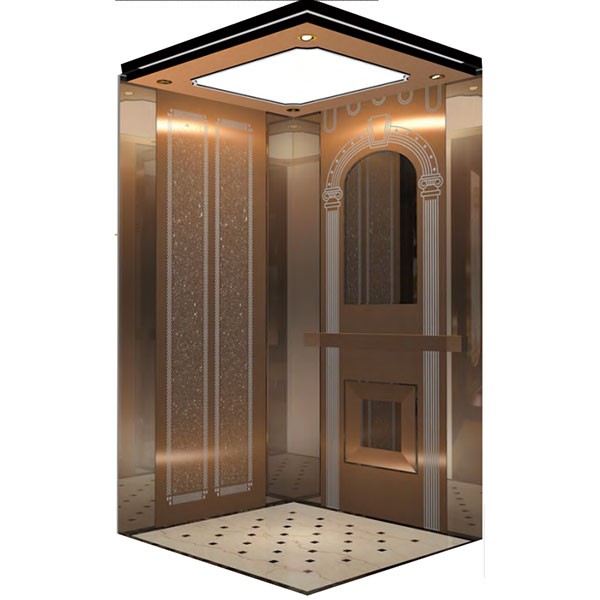

HLC-19-4 Passenger Elevator
EMI Available
Model: HLC-19-4
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

Car Design

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-19-4 800kg 10 Passenger Elevator

Elevators have become an integral part of our modern lives, providing efficient and convenient vertical transportation in buildings of all sizes. When it comes to choosing an elevator model that combines functionality, style, and safety, the HLC-2019-4 800kg 10 Passenger Elevator stands out as an excellent choice. In this blog, we'll delve into the impressive features and benefits of this exceptional elevator model.

    Spacious and Efficient Design

      The HLC-2019-4 Passenger Elevator is designed to offer a perfect balance of spaciousness and efficiency. With a generous 800kg capacity, it can comfortably transport up to 10 passengers, making it an ideal choice for mid-sized to large buildings. Its design ensures passengers can enjoy a roomy and comfortable experience while traveling between floors.

        Cutting-Edge Technology

          This elevator model integrates state-of-the-art elevator technology to provide a smooth and reliable ride. Advanced control systems deliver rapid response times and precise floor leveling, enhancing the overall passenger experience. The technology also contributes to energy efficiency, reducing operational costs and environmental impact.

            Safety Redefined

              Safety is paramount in elevator design, and the HLC-2019-4 Passenger Elevator takes it to a whole new level. It boasts a comprehensive range of safety features, including emergency stop buttons, overload protection, automatic door reopening mechanisms, and compliance with industry safety standards. Passengers can ride with confidence, knowing their safety is a top priority.

                Customizable Aesthetics

                  Elevators are not just functional; they can also enhance the aesthetics of a building. The HLC-2019-4 Elevator offers a sleek and modern design that can be customized to complement the overall architectural style of your building. Whether you prefer a contemporary or more traditional look, this elevator can be tailored to match your design preferences.

                    Low Maintenance Requirements

                      Built for durability, the HLC-2019-4 Elevator is designed to minimize maintenance needs. High-quality components and materials ensure that it operates efficiently for extended periods with minimal downtime and repair costs. This is a significant advantage for building owners looking to reduce long-term maintenance expenses.

                        Inclusivity and Accessibility

                          In today's inclusive world, the HLC-2019-4 Elevator is designed to accommodate passengers of all abilities. It features accessibility options like braille buttons, audio announcements, and handrails to ensure that everyone, including those with disabilities, can use it comfortably and safely.

                            Energy Efficiency

                              Energy conservation is a critical concern in contemporary building design. The HLC-2019-4 Elevator is engineered with energy efficiency in mind, featuring LED lighting, standby mode, and regenerative drives to reduce energy consumption and operating costs.

                              Conclusion

                              The HLC-19-4 800kg 10 Passenger Elevator is a versatile and high-performance choice for a wide range of buildings. With its spacious and efficient design, cutting-edge technology, uncompromising safety features, customizable aesthetics, low maintenance requirements, and energy efficiency, it offers a comprehensive solution for architects, building owners, and passengers alike.

                              When you're seeking to enhance the vertical transportation experience in your building while prioritizing safety, style, and sustainability, the HLC-2019-4 Elevator is a top-tier choice. Elevate your building with this exceptional elevator model and experience the difference it can make in your space.
