HLC-19-9 Passenger Elevator
EMI Available
Model: HLC-19-9
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

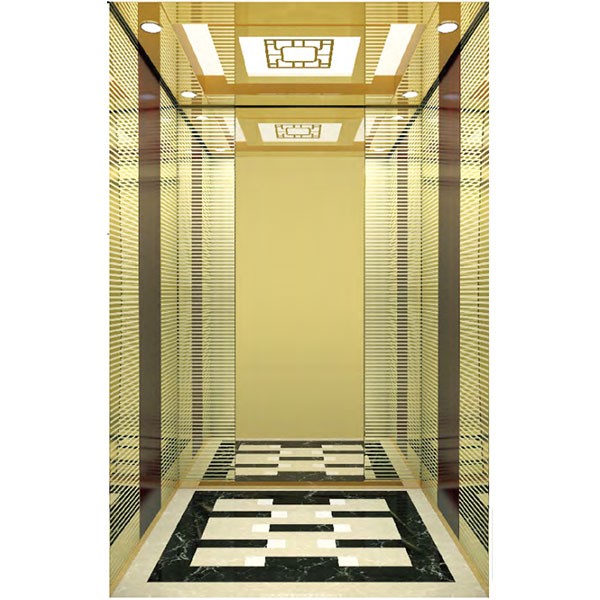

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

Car Design

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-19-9 800kg 10 Passenger Elevator

Elevators have become an essential component of modern buildings, providing seamless vertical transportation while enhancing accessibility, convenience, and safety. When selecting an elevator for your building, the HLC-2019-9 800kg 10 Passenger Elevator is a choice that stands out. In this blog, we will explore the exceptional features and benefits of this remarkable elevator model, designed to combine efficiency, style, and safety seamlessly.

    Efficient Space Utilization

      The HLC-19-9 Passenger Elevator is thoughtfully designed to optimize space efficiently. With a 800kg capacity, it can comfortably accommodate up to 10 passengers, making it an ideal choice for medium to large buildings. This elevator ensures a spacious and comfortable ride, even in high-traffic situations.

        Cutting-Edge Technology

          This elevator model incorporates the latest advancements in elevator technology, providing a smooth and reliable experience. Advanced control systems ensure rapid response times and precise floor leveling, contributing to a comfortable ride for passengers. The technology also promotes energy efficiency, reducing operational costs and environmental impact.

            Uncompromising Safety

              Safety is of utmost importance in elevator design, and the HLC-19-9 Passenger Elevator excels in this regard. It comes equipped with a comprehensive range of safety features, including emergency stop buttons, overload protection, and automatic door reopening mechanisms. Furthermore, the elevator complies with industry safety standards, ensuring passenger peace of mind during every ride.

                Customizable Aesthetics

                  Elevators serve not only a functional role but also an aesthetic one in your building. The HLC-19-9 Elevator offers a sleek and modern design that can be customized to complement your building's architectural style. Whether you prefer a contemporary, minimalist look or a more classic design, this elevator can be tailored to your preferences.

                    Low Maintenance

                      The HLC-19-9 Elevator is built for durability and low maintenance. Its reliable components and high-quality materials ensure efficient operation over extended periods with minimal need for repairs. This leads to reduced long-term maintenance costs and less downtime for building owners.

                        Accessibility and Inclusivity

                          Inclusivity is a crucial consideration in modern building design. The HLC-19-9 Elevator is equipped with accessibility features to ensure that everyone, including individuals with disabilities, can use it comfortably. These features include braille buttons, audio announcements, and handrails for added safety.

                            Energy Efficiency

                              Energy conservation is a top priority in today's world. The HLC-19-9 Elevator is designed with energy efficiency in mind, featuring LED lighting, standby mode, and regenerative drives to reduce energy consumption and operating costs.

                              Conclusion

                              The HLC-19-9 800kg 10 Passenger Elevator is an efficient and versatile choice for medium to large buildings. Its space-saving design, advanced technology, safety features, customizable aesthetics, low maintenance requirements, and energy efficiency make it an outstanding solution for architects, building owners, and passengers.

                              If you're looking to enhance the vertical transportation experience in your building while prioritizing safety, style, and sustainability, the HLC-2019-9 Elevator is a top-tier choice. Elevate your building with this exceptional elevator model and experience the difference it can make in your space.
