HLC-20-10 Passenger Elevator
EMI Available
Model: HLC-20-10
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

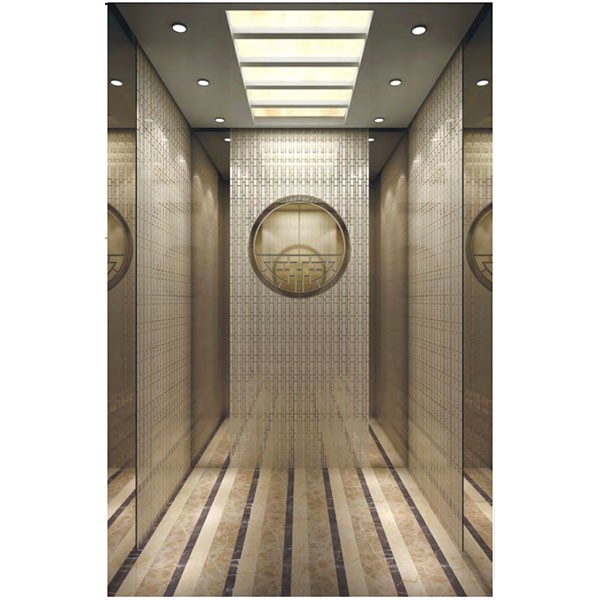

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

Car Design

Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm


Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-20-10 800kg 10 Passenger Elevator

In today's rapidly growing urban landscape, elevators play an indispensable role in modern architecture. They provide the vertical transportation that we often take for granted, making it possible for people to move effortlessly between floors in buildings of all types. The HLC-2020-10 800kg 10 Passenger Elevator is a remarkable addition to this essential technology, offering a superior passenger experience and optimized building functionality. In this blog post, we'll delve into the key features and benefits of this impressive elevator model.

    Ample Load Capacity

      The HLC-2020-10 elevator is designed to carry up to 800kg of weight, making it a versatile solution for various applications. Whether it's in a commercial office building, a residential complex, or a healthcare facility, this elevator is well-equipped to transport both passengers and goods, ensuring that your building's needs are met efficiently.

        Spacious and Comfortable

          With a passenger capacity of 10, the HLC-2020-10 elevator offers ample space for passengers, providing a comfortable and stress-free vertical transportation experience. The spacious interior ensures that passengers have room to move freely, reducing the feeling of congestion and promoting a pleasant ride.

            Cutting-Edge Safety Features

              Safety is paramount in elevator design, and the HLC-2020-10 model excels in this aspect. It features advanced safety elements such as:

              • Emergency communication system: Passengers can swiftly contact building management or emergency services in case of issues or emergencies.
              • Emergency stop button: The elevator can be halted in case of emergencies or technical problems, prioritizing passenger safety.
              • Overload protection: Sensors are in place to detect overloading, preventing the elevator from operating until the excess weight is removed.
              • Automatic door reopening: The elevator's doors automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.

                Energy Efficiency

                  The HLC-2020-10 elevator is engineered with energy efficiency in mind. By reducing energy consumption, it not only lowers operational costs but also contributes to environmental sustainability. Its eco-friendly design benefits both building owners and the environment, aligning with the growing emphasis on green building practices.

                    Customization Options

                      Every building is unique, and the HLC-2020-10 elevator offers customization options to meet your specific requirements. Whether you prefer a sleek and modern design or a more traditional aesthetic that complements your building's style, this elevator can be tailored to seamlessly blend with its surroundings.

                        Easy Maintenance

                          Regular maintenance is essential to ensure the long-term performance of any elevator. The HLC-2020-10 model is designed for easy accessibility and serviceability, making it convenient for technicians to perform routine maintenance. This feature not only ensures the elevator operates reliably but also minimizes downtime, maximizing its lifespan.

                          Conclusion

                          The HLC-2020-10 800kg 10 Passenger Elevator is a game-changer in the world of vertical transportation. With its ample load capacity, spacious and comfortable design, cutting-edge safety features, energy efficiency, customization options, and easy maintenance, it is a top choice for spaces where passenger comfort and safety are paramount.

                          Investing in the HLC-2020-10 elevator not only enhances the value of your property but also ensures the satisfaction of the people who use it. Elevate your building's transportation experience with this outstanding elevator model and provide a reliable, efficient, and state-of-the-art solution for vertical transportation in your space. Upgrade your building with the HLC-2020-10 and experience the future of elevators today.
