HLC-20-12 Passenger Elevator
EMI Available
Model: HLC-20-12
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

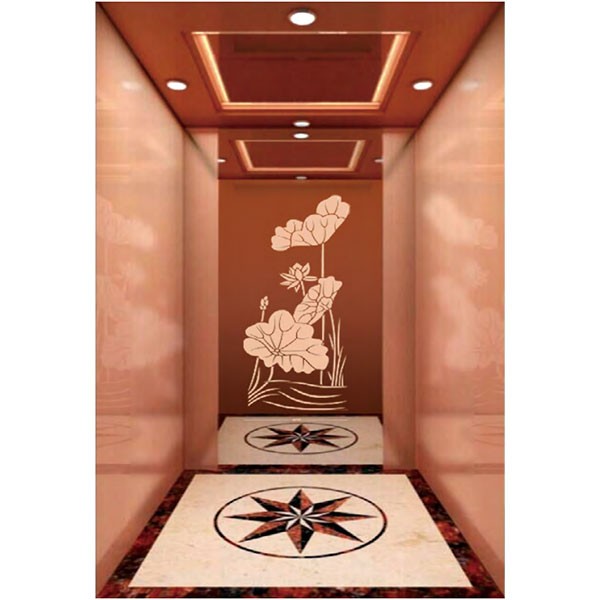

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, champagne gold, Black titanium color.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Space with the HLC-20-12 450kg 6 Passenger Elevator

Elevators have transformed the way we experience tall buildings, making vertical transportation an essential part of modern life. Whether you're designing a compact office space, a stylish boutique hotel, or a cozy residential building, choosing the right elevator is crucial to maximize the utility and comfort of your space. The HLC-2020-12 450kg 6 Passenger Elevator is a remarkable elevator model designed to provide a seamless and efficient vertical transportation solution. In this blog post, we will explore the key features and benefits of this impressive elevator model.

    Compact and Space-Efficient Design

      The HLC-2020-12 elevator is crafted with compact spaces in mind. With its small footprint, this elevator is perfect for buildings where space is at a premium. It's an ideal choice for low- to mid-rise buildings, including boutique hotels, small offices, and residential complexes, where maximizing floor space is essential.

        Ideal for Smaller Groups

          This elevator model is designed for efficiency in moving smaller groups of people. With a passenger capacity of 6, it ensures a quick and convenient ride for passengers. This efficiency is particularly valuable in spaces where overcrowding is not a frequent concern, such as smaller office buildings or apartment complexes.

            Advanced Safety Features

              Safety is a top priority for any elevator, and the HLC-2020-12 excels in this area with advanced safety features that include:

              • Emergency communication system: In case of emergencies, passengers can quickly contact building management or emergency services.
              • Emergency stop button: The elevator can be stopped in case of emergencies or technical issues, ensuring passenger safety.
              • Overload protection: Sensors detect overloading and prevent the elevator from operating until the excess weight is removed.
              • Automatic door reopening: The elevator's doors automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.

                Energy Efficiency

                  The HLC-2020-12 elevator is designed to be energy-efficient, reducing operational costs and environmental impact. It aligns with today's emphasis on sustainable and eco-friendly building practices, making it a smart choice for both building owners and the environment.

                    Customization Options

                      Every building has its unique aesthetic and functional requirements, and the HLC-2020-12 elevator can be customized to meet your specific needs. Whether you prefer a sleek and modern design or a more classic look that complements your building's style, customization options are available to ensure the elevator blends seamlessly with its surroundings.

                        Easy Maintenance

                          Regular maintenance is essential for the long-term performance of any elevator, and the HLC-2020-12 model is designed with accessibility and serviceability in mind. This makes it easier for technicians to perform routine maintenance, ensuring the elevator operates reliably and minimizing downtime.

                          Conclusion

                          The HLC-2020-12 450kg 6 Passenger Elevator is a game-changer for compact spaces. With its space-efficient design, advanced safety features, energy efficiency, customization options, and easy maintenance, it is the perfect choice for buildings where efficiency, safety, and passenger comfort are a top priority.

                          Investing in the HLC-2020-12 elevator ensures the satisfaction of the people who use it and enhances the utility of your space. Elevate your building experience with this outstanding elevator model, offering a reliable, efficient, and state-of-the-art solution for vertical transportation in your space. Upgrade your space and experience seamless vertical transportation with the HLC-2020-12 elevator.
