HLC-20-13 Passenger Elevator
EMI Available
Model: HLC-20-13
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

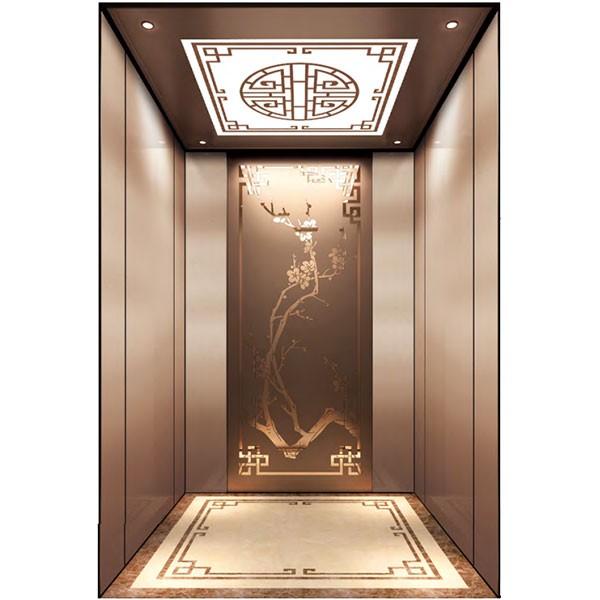

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-20-13 630kg 8 Passenger Elevator

Elevators are the unsung heroes of urban life, providing seamless vertical transportation in buildings of all types. Whether you're designing a bustling commercial complex, a cozy residential building, or a dynamic healthcare facility, choosing the right elevator is crucial to ensure the smooth and efficient movement of people within your space. The HLC-2020-13 630kg 8 Passenger Elevator is a remarkable elevator model designed to enhance the vertical transportation experience while optimizing the functionality of your building. In this blog post, we'll explore the key features and benefits of this impressive elevator model.

    Optimal Passenger Capacity

      The HLC-2020-13 elevator strikes the perfect balance between capacity and space utilization. With a passenger capacity of 8, it offers ample room for passengers to move comfortably. This makes it an ideal choice for low- to mid-rise buildings, such as office complexes, residential buildings, and hotels, where the demand for efficient vertical transportation is high, but large crowds are not a frequent occurrence.

        Smooth and Efficient Ride

          One of the hallmarks of the HLC-2020-13 elevator is its smooth and efficient ride. It utilizes advanced technology to ensure passengers experience minimal vibrations and noise during their journey. Whether it's a quick trip to the top floor of an office building or a leisurely ride to your apartment, this elevator makes vertical transportation a breeze.

            Cutting-Edge Safety Features

              Safety is of utmost importance in elevator design, and the HLC-2020-13 model excels in this aspect. It features advanced safety elements such as:

              • Emergency communication system: Passengers can quickly contact building management or emergency services in case of issues or emergencies.
              • Emergency stop button: The elevator can be halted in case of emergencies or technical problems, prioritizing passenger safety.
              • Overload protection: Sensors detect overloading and prevent the elevator from operating until the excess weight is removed.
              • Automatic door reopening: The elevator's doors automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.

                Energy Efficiency

                  The HLC-2020-13 elevator is designed with energy efficiency in mind. By minimizing energy consumption, it reduces operational costs and contributes to environmental sustainability. This eco-friendly approach not only benefits building owners but also aligns with today's growing emphasis on sustainable and green building practices.

                    Customization Options

                      Every building has unique requirements, and the HLC-2020-13 elevator offers customization options to meet your specific needs. Whether you prefer a modern and sleek design or a more classic look that complements your building's style, this elevator can be tailored to seamlessly blend with its surroundings.

                        Low Maintenance Requirements

                          Regular maintenance is essential to ensure the long-term performance of any elevator. The HLC-2020-13 elevator is designed with accessibility and serviceability in mind, making it convenient for technicians to conduct routine maintenance. This ensures that the elevator operates reliably, minimizes downtime, and maximizes its lifespan.

                          Conclusion

                          The HLC-2020-13 630kg 8 Passenger Elevator is a game-changer in the world of vertical transportation. With its optimal passenger capacity, smooth and efficient ride, cutting-edge safety features, energy efficiency, customization options, and low maintenance requirements, it is an excellent choice for spaces where passenger comfort and safety are paramount.

                          Investing in the HLC-2020-13 elevator ensures the satisfaction of the people who use it and enhances the utility of your space. Elevate your building's transportation experience with this outstanding elevator model and provide a reliable, efficient, and state-of-the-art solution for vertical transportation in your space. Upgrade your building with the HLC-2020-13 and experience a superior vertical transportation solution.
