HLC-20-14 Passenger Elevator
EMI Available
Model: HLC-20-14
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!



Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

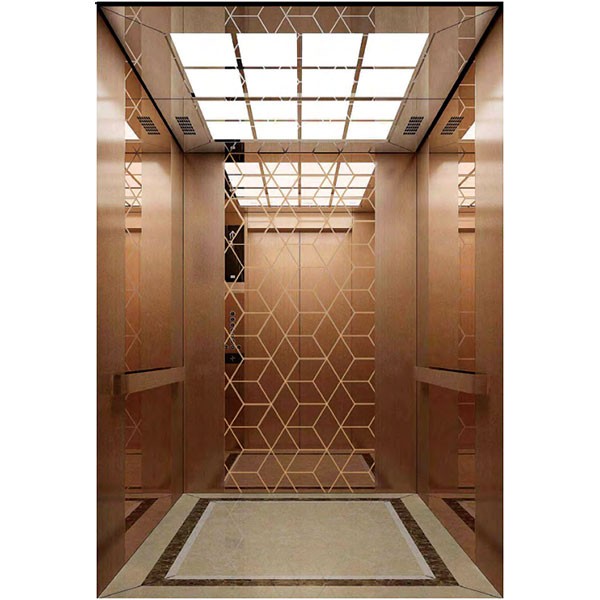

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.



Elevate Your Building with the HLC-20-14 800kg 10 Passenger Elevator

Elevators are the arteries of modern architecture, facilitating seamless vertical transportation in buildings of all shapes and sizes. Whether you're planning a state-of-the-art commercial complex, a contemporary residential building, or a healthcare facility that focuses on efficiency, choosing the right elevator is critical for enhancing the functionality and comfort of your space. The HLC-2020-14 800kg 10 Passenger Elevator is an exceptional model designed to provide an unmatched vertical transportation experience while optimizing your building's efficiency. In this blog post, we'll delve into the key features and benefits of this impressive elevator model.

    Generous Load Capacity

      The HLC-2020-14 elevator is engineered to accommodate an impressive load capacity of 800kg. This makes it an ideal solution for a wide range of applications, whether you need to transport passengers, heavy equipment, or even vehicles. The substantial weight capacity ensures that your elevator remains versatile and adaptable to the evolving needs of your building.

        Spacious and Comfortable

          With the capacity to carry 10 passengers, the HLC-2020-14 elevator offers a spacious and comfortable transportation experience. Whether you're in a bustling commercial environment with high elevator usage or a residential complex where families rely on it daily, the elevator's generous passenger capacity ensures a comfortable and convenient ride for all.

            Cutting-Edge Safety Features

              Safety is paramount in elevator design, and the HLC-2020-14 model excels in this aspect. It comes equipped with advanced safety features, including:

              • Emergency stop button: Passengers can halt the elevator's operation in case of emergencies or technical issues, ensuring their safety.
              • Overload protection: Sensors detect overloading, preventing the elevator from operating until the excess weight is removed.
              • Automatic door reopening: The elevator's doors automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.
              • Fireman's operation: In case of a fire or emergency, this elevator can be controlled by emergency personnel, ensuring a swift and safe evacuation.

                Energy Efficiency

                  The HLC-2020-14 elevator is designed with energy efficiency in mind. It incorporates advanced technology to minimize energy consumption, resulting in lower operational costs and a reduced environmental impact. This eco-friendly approach benefits both building owners and the environment, aligning with the growing emphasis on sustainable building practices.

                    Customization Options

                      Every building has its unique requirements, and the HLC-2020-14 elevator can be customized to meet your specific needs. Whether you prefer a modern and sleek design that complements your building's style or a classic look, customization options are available to ensure the elevator seamlessly integrates with its surroundings.

                        Easy Maintenance

                          Regular maintenance is essential for the long-term performance of any elevator, and the HLC-2020-14 is designed with accessibility and serviceability in mind. This makes it easier for technicians to perform routine maintenance, ensuring that the elevator operates reliably, minimizes downtime, and maximizes its lifespan.

                          Conclusion

                          The HLC-2020-14 800kg 10 Passenger Elevator is a game-changer in the world of vertical transportation. With its generous load capacity, spacious and comfortable design, cutting-edge safety features, energy efficiency, customization options, and easy maintenance, it is the perfect choice for spaces where passenger comfort and safety are paramount.

                          Investing in the HLC-2020-14 elevator ensures the satisfaction of the people who use it and enhances the utility of your space. Elevate your building's transportation experience with this outstanding elevator model, providing a reliable, efficient, and state-of-the-art solution for vertical transportation in your space. Upgrade your building with the HLC-2020-14 and experience the future of elevators today.
