HLC-20-15 Passenger Elevator
EMI Available
Model: HLC-20-15
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

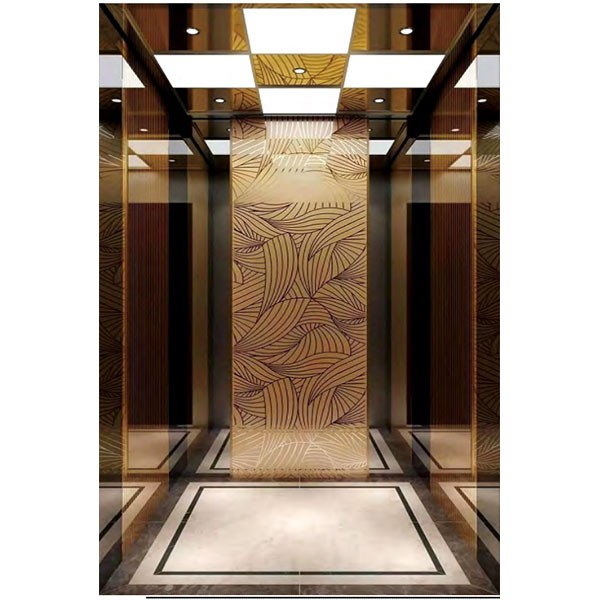

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building Experience with the HLC-20-15 1000kg 13 Passenger Elevator

Elevators are a staple of modern life, providing efficient vertical transportation in buildings of all types. Whether it's a bustling commercial complex, a sprawling residential building, or a healthcare facility, elevators play a pivotal role in the daily lives of people. If you're looking for a top-notch elevator for your building, the HLC-2020-15 1000kg 13 Passenger Elevator is an excellent choice. In this blog post, we will explore the key features and benefits of this exceptional elevator model.

    Impressive Load Capacity

      The HLC-2020-15 elevator is engineered with a substantial load capacity of 1000kg, making it suitable for a wide range of applications. Whether you need to transport passengers, heavy equipment, or even vehicles, this elevator is more than up to the task. The generous weight capacity ensures that your elevator remains versatile and adaptable to the changing needs of your building.

        Spacious and Comfortable

          With a capacity to carry 13 passengers, the HLC-2020-15 elevator offers a spacious and comfortable transportation experience. Whether you're in a bustling commercial environment with frequent elevator usage or a residential complex where families rely on it daily, the elevator's generous passenger capacity guarantees a comfortable and convenient ride.

            Cutting-Edge Safety Features

              Safety is paramount when it comes to elevators, and the HLC-2020-15 excels in this aspect. It's equipped with an array of cutting-edge safety features, including:

              • Emergency stop button: In case of emergencies or technical issues, passengers can quickly halt the elevator's movement, ensuring their safety.
              • Overload protection: Sensors detect overloading, preventing the elevator from operating until the excess weight is removed.
              • Automatic door reopening: The doors will automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.
              • Fireman's operation: In case of a fire or emergency, this elevator can be controlled by emergency personnel, ensuring a swift and safe evacuation.

                Energy Efficiency

                  The HLC-2020-15 elevator is designed with energy efficiency in mind. It utilizes the latest technology to minimize energy consumption, reducing operational costs and minimizing its environmental impact. This eco-friendly approach benefits both building owners and the environment, aligning with the growing emphasis on sustainability.

                    Customization Options

                      Every building is unique, and the HLC-2020-15 elevator can be customized to meet your specific needs. Whether you prefer a sleek and modern design that complements your building's style or a classic look, customization options are available to ensure the elevator seamlessly integrates with its surroundings.

                        Easy Maintenance

                          Regular maintenance is essential for the long-term performance of any elevator, and the HLC-2020-15 model is designed with accessibility and serviceability in mind. This makes it easier for technicians to perform routine maintenance, ensuring the elevator operates reliably, minimizes downtime, and maximizes its lifespan.

                          Conclusion

                          The HLC-2020-15 1000kg 13 Passenger Elevator is a game-changer in the world of vertical transportation. With its impressive load capacity, spacious and comfortable design, cutting-edge safety features, energy efficiency, customization options, and easy maintenance, it's an excellent choice for spaces where elevator performance and passenger experience matter.

                          Investing in the HLC-2020-15 elevator not only adds value to your property but also ensures the safety, comfort, and satisfaction of the people who use it. Elevate your building experience today with the HLC-2020-15 and provide a reliable, efficient, and state-of-the-art solution for vertical transportation in your space. Upgrade your building with this outstanding elevator model and experience the future of elevators today.
