HLC-20-16 Passenger Elevator
EMI Available
Model: HLC-20-16
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

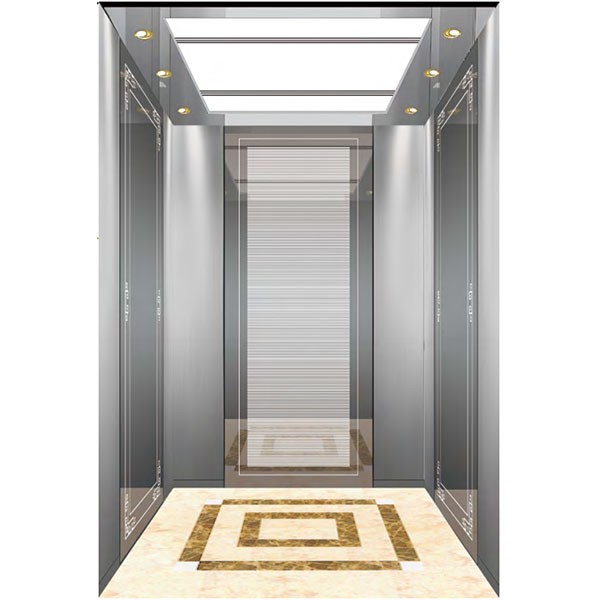

Car Design

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm


Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


HLC-20-16: Elevating Efficiency and Comfort with the 450kg 6 Passenger Elevator

Elevators have become an integral part of our daily lives, seamlessly transporting us to different levels of buildings with ease. The HLC-2020-16 450kg 6 Passenger Elevator is a prime example of modern engineering and design, offering a reliable and efficient solution for vertical transportation. In this blog post, we'll delve into the features and benefits of the HLC-2020-16 elevator, highlighting why it's an excellent choice for buildings of various sizes.

Efficiency and Speed:

The HLC-2020-16 elevator is designed to be a fast and efficient vertical transportation solution. With a capacity of 450kg (990 lbs), it's well-suited for small to medium-sized buildings, providing a comfortable and smooth ride for up to six passengers. The elevator's advanced technology ensures swift and reliable movement, reducing waiting times and improving overall building accessibility.

Space-Saving Design:

Space is often at a premium in modern buildings. The HLC-2020-16 elevator is designed with a compact footprint, allowing it to fit into tight spaces without compromising on performance or passenger comfort. This feature makes it an ideal choice for both new construction and retrofit projects, where space constraints can be challenging.

Safety and Reliability:

Safety is a top priority in elevator design, and the HLC-2020-16 elevator meets the highest safety standards. It comes equipped with state-of-the-art safety features, such as emergency stop buttons, an intercom system for communication with building personnel, and overload protection. Passengers can have peace of mind knowing that they are in a secure and reliable mode of transportation.

Energy Efficiency:

In today's environmentally conscious world, energy efficiency is a significant factor in any building's design. The HLC-2020-16 elevator is built with energy-efficient components and technology. It incorporates LED lighting, regenerative drives, and standby mode to minimize energy consumption, reducing operational costs and environmental impact.

Customization Options:

One size does not fit all, and the HLC-2020-16 elevator recognizes that. It offers a wide range of customization options, from finishes and materials to cabin size and design. This allows architects and building owners to tailor the elevator to match the aesthetic and functional requirements of the building. Whether you want a sleek and modern look or a classic and elegant feel, the HLC-2020-16 elevator can be customized to suit your needs.

User-Friendly Interface:

The elevator's control panel is designed with user-friendliness in mind. Intuitive buttons and clear displays make it easy for passengers to select their desired floor and navigate the elevator efficiently. Additionally, a voice annunciator system can provide audio cues for visually impaired individuals, enhancing the elevator's accessibility.

Conclusion:

The HLC-2020-16 450kg 6 Passenger Elevator is a remarkable addition to the world of vertical transportation. Its blend of efficiency, safety, and customization options makes it an excellent choice for a wide range of buildings, from offices and hotels to residential complexes. This elevator not only improves the vertical transportation experience but also contributes to energy savings and environmental responsibility. So, if you're looking for an elevator that combines innovation with reliability, the HLC-2020-16 is a top contender. Elevate your building with this exceptional solution, and experience the difference it makes in your daily life.
