HLC-20-19 Passenger Elevator
EMI Available
Model: HLC-20-19
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

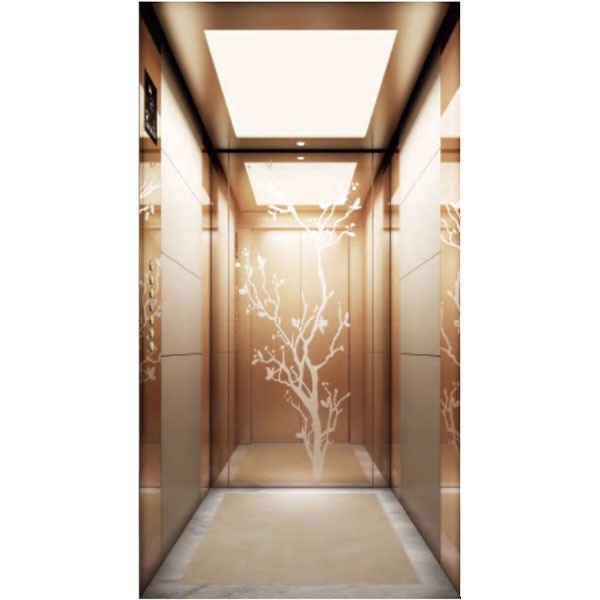

3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, champagne gold, Black titanium color.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-20-19 1000kg 13 Passenger Elevator

In the world of modern architecture and construction, elevators play a pivotal role in ensuring smooth vertical transportation. The HLC-2020-19 1000kg 13 Passenger Elevator is a groundbreaking solution designed to elevate not just passengers but also the functionality and appeal of your building. In this blog, we will explore the exceptional features and benefits of this elevator system.

Unveiling the HLC-2020-19 1000kg 13 Passenger Elevator

    Exceptional Capacity

      The HLC-2020-19 elevator stands out with its remarkable 1000kg capacity, allowing it to comfortably accommodate up to 13 passengers. This generous capacity makes it the perfect choice for high-traffic buildings, ensuring that people can move efficiently and comfortably between floors.

        Space Optimization

          One of the key highlights of this elevator is its ability to optimize space. The compact and efficient design allows it to seamlessly integrate into various architectural plans, making it an excellent choice for buildings with limited space. You can maximize your usable area without compromising on capacity or performance.

            Cutting-Edge Technology

              This elevator comes equipped with state-of-the-art technology to ensure a safe, efficient, and enjoyable user experience. Features such as advanced motion control, intuitive touchscreen controls, and energy-efficient LED lighting enhance the elevator's functionality and user-friendliness.

                Accessibility

                  Ensuring that your building is accessible to all individuals is a top priority. The HLC-2020-19 elevator complies with relevant accessibility regulations, making it suitable for people with mobility challenges. Its spacious cabin and user-friendly controls make it easy for everyone to use.

                    Customization Options

                      This elevator offers a high degree of customization, allowing you to choose from a wide range of interior finishes, materials, and colors. You can create an interior that aligns with your building's aesthetics and adds a touch of style and sophistication.

                      Benefits of the HLC-2020-19 Elevator

                      1. Enhanced Building Accessibility: This elevator ensures that your building is welcoming and accessible to all, promoting inclusivity and meeting legal requirements.
                      2. Improved Efficiency: The HLC-2020-19 elevator is designed to reduce waiting and travel times, enhancing the overall efficiency of your building.
                      3. Energy Efficiency: With energy-efficient components and LED lighting, this elevator contributes to a more sustainable and eco-friendly building.
                      4. Space Utilization: Its compact design optimizes the use of space, making it an excellent choice for buildings where space is at a premium.
                      5. Aesthetic Enhancement: The wide range of customization options allows you to create a visually appealing interior that complements your building's design and style.

                      Conclusion

                      The HLC-2020-19 1000kg 13 Passenger Elevator is a game-changer for all types of buildings. Whether you manage a commercial property, a residential complex, or a healthcare facility, this elevator system is designed to elevate your building's accessibility, efficiency, and aesthetics. With its impressive capacity, advanced technology, and customizable features, it offers a host of benefits that can significantly enhance the functionality and appeal of your building. Elevate your building with the HLC-2020-19 elevator and provide your occupants with a seamless and enjoyable transportation solution that truly raises the bar.
