450kg 6 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "[email protected] "or" [email protected]"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 450 kg / 6 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 1650 mm (W)x 1750 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |
3. CAR SPECIFICATION: | |
Car Internal Dimension | 1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size |

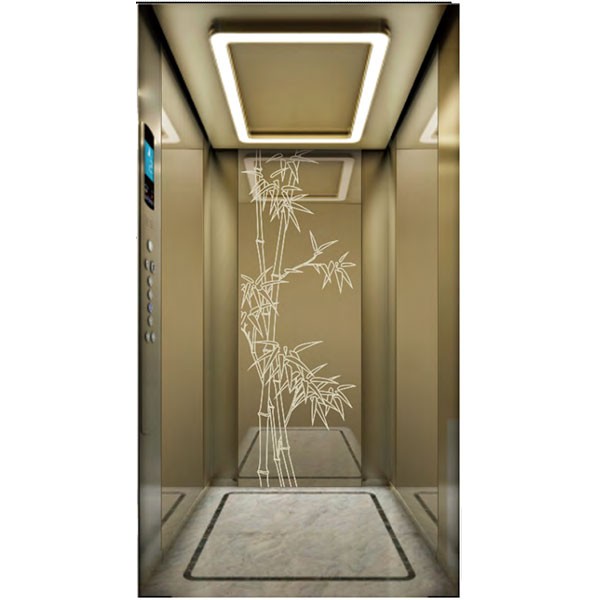

Car Design | Champagne Gold Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Champagne Gold Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Champagne Gold Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Champagne Gold Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, titanium gold, concave gold, Rose gold, black titanium.
Landing Door Decoration:
We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.
Elevate Your Building with the HLC-20-20 450kg 6 Passenger Elevator
In an age where accessibility and efficiency are paramount, elevators have become a vital component of any building. The HLC-2020-20 450kg 6 Passenger Elevator is a remarkable solution designed to enhance the vertical transportation experience in your building. In this blog, we will delve into the exceptional features and benefits of this elevator system.
Introducing the HLC-2020-20 450kg 6 Passenger Elevator
Optimal Capacity
The HLC-2020-20 elevator offers a 450kg capacity, comfortably accommodating up to 6 passengers. This makes it the perfect choice for smaller to medium-sized buildings, providing a seamless vertical transportation solution.
Space Efficiency
One of the standout features of this elevator is its space-efficient design. It's compact and streamlined, making it an excellent choice for buildings with limited space. This allows you to maximize the usable area of your building without sacrificing capacity or functionality.
Cutting-Edge Technology
The HLC-2020-20 elevator is equipped with state-of-the-art technology to ensure a safe, efficient, and enjoyable user experience. Features like intuitive touchscreen controls, advanced motion control, and energy-efficient LED lighting enhance the elevator's performance and user-friendliness.
Accessibility
Ensuring that your building is accessible to all individuals is a top priority. The HLC-2020-20 elevator complies with relevant accessibility regulations, making it a suitable choice for people with mobility challenges. Its spacious cabin and user-friendly controls ensure ease of use for everyone.
Customization Options
This elevator offers a range of customization options, allowing you to choose from various interior finishes, materials, and colors. You can create an interior that aligns with your building's aesthetics, adding a touch of style and sophistication.
Benefits of the HLC-2020-20 Elevator
- Enhanced Building Accessibility: This elevator ensures that your building is welcoming to all, fostering inclusivity and meeting legal requirements.
- Improved Efficiency: The HLC-2020-20 elevator is designed to minimize waiting and travel times, enhancing the overall efficiency of your building.
- Energy Efficiency: With energy-efficient components and LED lighting, this elevator contributes to a more sustainable and eco-friendly building.
- Space Optimization: Its compact design maximizes the use of available space, making it an excellent choice for buildings with limited real estate.
- Aesthetic Enhancement: The wide range of customization options enables you to create an aesthetically pleasing interior that complements your building's design and style.
Conclusion
The HLC-2020-20 450kg 6 Passenger Elevator is an excellent choice for various building types. Whether you manage a residential complex, a commercial property, or a healthcare facility, this elevator system is designed to elevate your building's accessibility, efficiency, and aesthetics. With its impressive capacity, advanced technology, and customization features, it offers a host of benefits that can significantly enhance the functionality and appeal of your building. Elevate your building with the HLC-2020-20 elevator and provide your occupants with a seamless and enjoyable vertical transportation solution.
