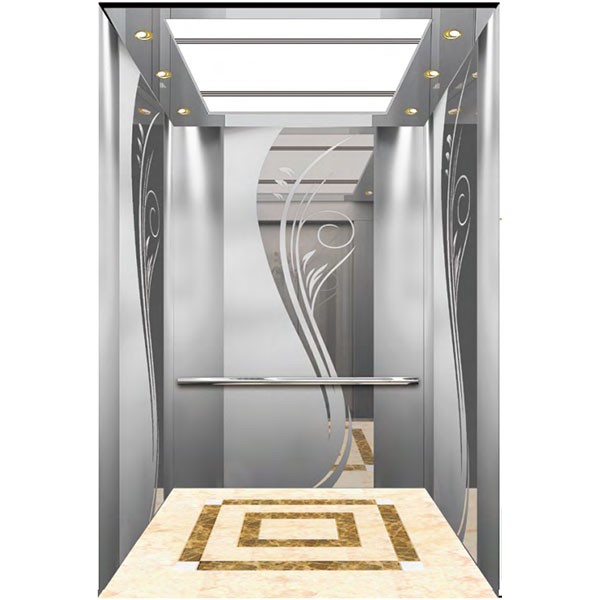

HLC-20-25 Passenger Elevator
EMI Available
Model: HLC-20-25
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-20-25 630kg 8 Passenger Elevator

Elevators have become an integral part of the modern building landscape, significantly improving accessibility and convenience. The HLC-2020-25 630kg 8 Passenger Elevator is a state-of-the-art solution designed to take vertical transportation to new heights. In this blog, we will explore the impressive features and benefits of this exceptional elevator system.

The HLC-20-25 630kg 8 Passenger Elevator: A Closer Look

    Impressive Capacity

      The HLC-2020-25 elevator boasts an impressive 630kg capacity, making it an ideal choice for comfortably accommodating up to 8 passengers. This generous capacity is well-suited for a range of building types, ensuring seamless vertical transportation.

        Space Optimization

          This elevator is designed with space optimization in mind. Its compact and efficient design allows it to seamlessly integrate into various architectural plans. It's an excellent choice for buildings with limited space, enabling you to maximize your usable area without compromising on capacity or functionality.

            Cutting-Edge Technology

              The HLC-2020-25 elevator is equipped with state-of-the-art technology to ensure a safe, efficient, and enjoyable user experience. Features such as advanced motion control, intuitive touchscreen controls, and energy-efficient LED lighting enhance the elevator's performance and user-friendliness.

                Accessibility

                  Ensuring that your building is accessible to all individuals is a top priority. The HLC-2020-25 elevator complies with relevant accessibility regulations, making it suitable for people with mobility challenges. Its spacious cabin and user-friendly controls ensure ease of use for everyone.

                    Customization Options

                      This elevator offers a high degree of customization, allowing you to choose from a wide range of interior finishes, materials, and colors. This enables you to create an interior that aligns with your building's aesthetics, adding a touch of style and sophistication.

                      Benefits of the HLC-20-25 Elevator

                      1. Enhanced Building Accessibility: This elevator ensures your building is welcoming to all, fostering inclusivity and meeting legal requirements.
                      2. Improved Efficiency: The HLC-2020-25 elevator is designed to minimize waiting and travel times, enhancing the overall efficiency of your building.
                      3. Energy Efficiency: With energy-efficient components and LED lighting, this elevator contributes to a more sustainable and eco-friendly building.
                      4. Space Utilization: Its compact design optimizes the use of space, making it an excellent choice for buildings where space is at a premium.
                      5. Aesthetic Enhancement: The wide range of customization options allows you to create a visually appealing interior that complements your building's design and style.

                      Conclusion

                      The HLC-2020-25 630kg 8 Passenger Elevator is a versatile solution for various building types. Whether you manage a commercial property, a residential complex, or a healthcare facility, this elevator system is designed to elevate your building's accessibility, efficiency, and aesthetics. With its impressive capacity, advanced technology, and customization features, it offers a host of benefits that can significantly enhance the functionality and appeal of your building. Elevate your building's vertical transportation experience with the HLC-2020-25 elevator and provide your occupants with a seamless and enjoyable transportation solution that truly raises the bar.
