HLC-20-30 Passenger Elevator
EMI Available
Model: HLC-20-30
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

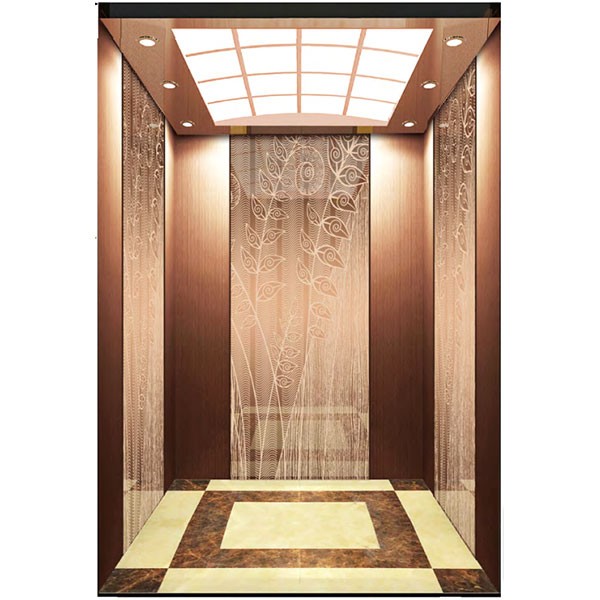

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


The Pinnacle of Vertical Transportation: HLC-20-30 800kg 10 Passenger Elevator

Elevators have become an indispensable part of modern urban living, revolutionizing the way we access different floors in buildings, making our daily lives more convenient and efficient. The HLC-2020-30 800kg 10 Passenger Elevator is an excellent example of how innovation and technology are redefining the world of vertical transportation. In this blog, we'll explore the features and benefits of this remarkable elevator, highlighting its capacity, safety features, and design elements.

The HLC-20-30 Elevator: A Cutting-Edge Solution

The HLC-2020-30 elevator is the result of advanced engineering and design, addressing the increasing demand for reliable, efficient, and safe vertical transportation. This elevator model can transport up to ten passengers or handle a maximum weight of 800 kilograms, making it an ideal choice for a wide range of applications, including commercial buildings, residential complexes, hotels, and more.

Key Features

  1. Impressive Capacity: The HLC-2020-30 elevator offers a generous 800kg capacity, ensuring it can comfortably accommodate multiple passengers or heavier loads, making it a versatile solution for various settings.
  2. Smooth and Quiet Operation: Thanks to advanced engineering and technology, this elevator provides a smooth and virtually silent ride, enhancing the overall user experience.
  3. Safety First: Safety is a top priority for elevators, and the HLC-2020-30 is equipped with an array of safety features, including emergency brakes, anti-slip flooring, and an emergency communication system, ensuring the well-being of passengers.
  4. Energy Efficiency: The elevator is designed to be energy-efficient, helping building owners reduce their environmental footprint and operational costs.
  5. Aesthetic Excellence: This elevator model features a modern and stylish design, making it an attractive addition to any building's interior.

Benefits of the HLC-20-30 Elevator

  1. Optimal Convenience: The spacious interior and swift operation of the HLC-2020-30 elevator significantly enhance convenience for passengers. Whether you're transporting heavy goods or moving between floors, this elevator offers a seamless and stress-free experience.
  2. Space Optimization: With its high capacity, it is an excellent choice for buildings where space is at a premium. The elevator allows you to transport more passengers and goods in a single trip, making the most of available space.
  3. Safety and Security: Safety remains a top priority, and this elevator model goes the extra mile in ensuring passenger safety through a comprehensive range of features. This provides peace of mind to users and building owners alike.
  4. Reduced Environmental Impact: The energy-efficient design of the HLC-2020-30 contributes to lower energy consumption and, subsequently, a reduced carbon footprint for the building. This aligns with the global emphasis on sustainability and eco-friendly practices.
  5. Aesthetic Appeal: Elevators are not just functional; they can also be an architectural statement. The stylish design of this model adds a touch of modernity and sophistication to any building's interior, enhancing the overall ambiance.

Conclusion

The HLC-2020-30 800kg 10 Passenger Elevator is a significant leap in elevator technology. Its impressive capacity, advanced safety features, and energy-efficient design make it a reliable and convenient choice for a variety of applications. Elevators like the HLC-2020-30 play a pivotal role in modern urban living, enhancing accessibility, convenience, and the overall quality of life. As the demand for efficient vertical transportation continues to grow, elevators like this one will undoubtedly shape our cities and buildings for years to come, promising a brighter, more accessible future.
