1000kg 13 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "[email protected] "or" [email protected]"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 1000 kg / 13 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 2050 mm (W)x 2050 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |

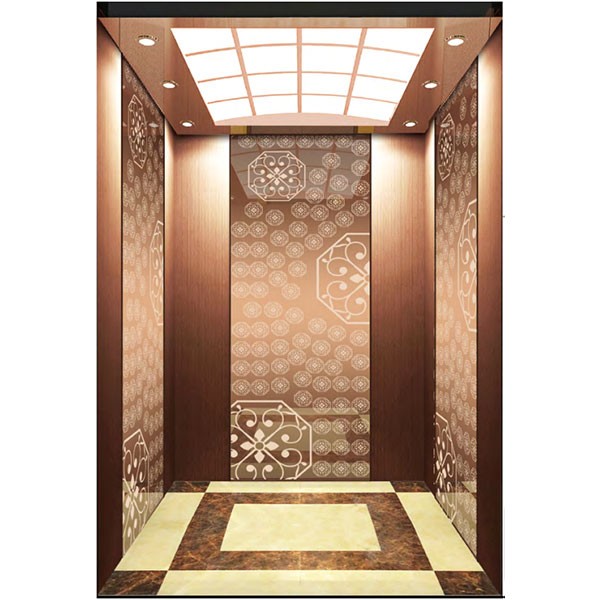

3. CAR SPECIFICATION: | |
Car Internal Dimension | 1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size |
Car Design | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.
Landing Door Decoration:
We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.
The Ultimate Elevator Experience: HLC-20-36 1000kg 13 Passenger Elevator
In our fast-paced world of towering skyscrapers and multi-story buildings, elevators have become an essential feature for ensuring convenient access and vertical transportation. The HLC-2020-36 1000kg 13 Passenger Elevator is a testament to the innovation and technology that are shaping the future of vertical transportation. In this blog, we will delve into the features and benefits of this impressive elevator, emphasizing its remarkable capacity, safety features, and modern design that enhance convenience and efficiency for users.
The HLC-20-36 Elevator: An Overview
The HLC-2020-36 elevator is a pinnacle of advanced engineering and modern design, developed to meet the growing demand for efficient, reliable, and safe vertical transportation. This elevator model can comfortably transport up to thirteen passengers or handle a maximum weight of 1000 kilograms, making it an ideal choice for various applications, including commercial buildings, residential complexes, hotels, and more.
Key Features
- Impressive Capacity: The HLC-2020-36 elevator offers an extraordinary 1000kg capacity, ensuring it can comfortably accommodate multiple passengers or heavier loads, making it a versatile solution for various settings.
- Smooth and Silent Operation: Thanks to advanced engineering and technology, this elevator provides a smooth and nearly silent ride, enhancing the overall user experience.
- Safety at the Forefront: Safety is a top priority for elevators, and the HLC-2020-36 is equipped with a range of safety features, including emergency brakes, anti-slip flooring, and an emergency communication system, ensuring the well-being of passengers.
- Energy Efficiency: The elevator is designed to be energy-efficient, helping building owners reduce their operational costs while also minimizing the environmental footprint.
- Aesthetic Excellence: This model features a modern and stylish design, adding a touch of elegance to any building's interior.
Benefits of the HLC-20-36 Elevator
- Enhanced Convenience: The spacious interior and swift operation of the HLC-2020-36 elevator significantly enhance convenience for passengers. Whether you're moving between floors or transporting heavy items, this elevator offers a seamless and stress-free experience.
- Space Optimization: With its high capacity, it's an excellent choice for buildings where space is at a premium. The elevator allows you to transport more passengers and goods in a single trip, making the most of available space.
- Safety and Peace of Mind: Safety remains a top priority, and this elevator model prioritizes passenger safety through a comprehensive array of features, offering peace of mind to users and building owners alike.
- Reduced Environmental Impact: The energy-efficient design of the HLC-2020-36 contributes to lower energy consumption and a reduced carbon footprint for the building. This aligns with the global emphasis on sustainability and eco-friendly practices.
- Aesthetic Appeal: Elevators are not just functional; they can also be an architectural statement. The stylish design of this model adds a touch of modernity and sophistication to any building's interior, enhancing its overall ambiance.
Conclusion
The HLC-20-36 1000kg 13 Passenger Elevator represents a significant leap in elevator technology. Its remarkable capacity, advanced safety features, and energy-efficient design make it a reliable and convenient choice for a variety of applications. Elevators like the HLC-20-36 play a pivotal role in modern urban living, enhancing accessibility, convenience, and the overall quality of life. As the demand for efficient vertical transportation continues to grow, elevators like this one will undoubtedly shape our cities and buildings for years to come, promising a brighter, more accessible future.
