HLC-20-37 Passenger Elevator
EMI Available
Model: HLC-20-37
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

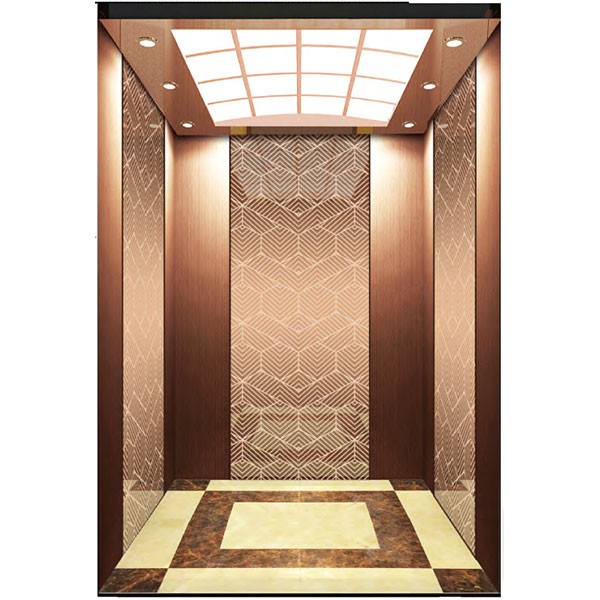

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


HLC-20-37: Elevating Efficiency and Style with the 450kg 6 Passenger Elevator

Elevators have revolutionized vertical transportation, making multi-story buildings more accessible and user-friendly. The HLC-2020-37 450kg 6 Passenger Elevator is a shining example of how innovation and technology are enhancing urban living. In this blog, we will explore the key features and benefits of this remarkable elevator, emphasizing its capacity, safety features, and modern design that elevate convenience and efficiency for users.

The HLC-20-37 Elevator: An Overview

The HLC-2020-37 elevator is a testament to advanced engineering and modern design, developed to meet the growing need for efficient, reliable, and safe vertical transportation. This elevator model can comfortably transport up to six passengers or handle a maximum weight of 450 kilograms, making it a versatile choice for various applications, including residential buildings, smaller commercial spaces, and more.

Key Features

  1. Optimal Capacity: The HLC-2020-37 elevator offers a capacity of 450 kilograms, ensuring it can comfortably accommodate several passengers or moderate loads, making it an ideal solution for various settings.
  2. Smooth and Silent Operation: Thanks to advanced engineering and technology, this elevator provides a smooth and nearly silent ride, enhancing the overall user experience.
  3. Safety Features: Safety is a top priority for elevators, and the HLC-2020-37 is equipped with a range of safety features, including emergency brakes, anti-slip flooring, and an emergency communication system, ensuring the well-being of passengers.
  4. Energy Efficiency: The elevator is designed to be energy-efficient, helping building owners reduce their operational costs while also minimizing the environmental footprint.
  5. Stylish Design: This model features a modern and stylish design, adding a touch of elegance to any building's interior.

Benefits of the HLC-20-37 Elevator

  1. Enhanced Convenience: The spacious interior and efficient operation of the HLC-2020-37 elevator significantly enhance convenience for passengers. Whether you're moving between floors or transporting goods, this elevator provides a seamless and stress-free experience.
  2. Space Optimization: With its moderate capacity, it's an excellent choice for buildings where space is at a premium. The elevator allows you to transport passengers and goods efficiently, making the most of the available space.
  3. Safety and Peace of Mind: Safety remains a top priority, and this elevator model prioritizes passenger safety through a comprehensive array of features, offering peace of mind to users and building owners alike.
  4. Reduced Environmental Impact: The energy-efficient design of the HLC-2020-37 contributes to lower energy consumption and a reduced carbon footprint for the building. This aligns with the global emphasis on sustainability and eco-friendly practices.
  5. Aesthetic Appeal: Elevators are not just functional; they can also be an architectural statement. The stylish design of this model adds a touch of modernity and sophistication to any building's interior, enhancing its overall ambiance.

Conclusion

The HLC-20-37 450kg 6 Passenger Elevator is a significant advancement in elevator technology. Its optimal capacity, advanced safety features, and energy-efficient design make it a reliable and convenient choice for a variety of applications. Elevators like the HLC-2020-37 play a pivotal role in modern urban living, enhancing accessibility, convenience, and the overall quality of life. As the demand for efficient vertical transportation continues to grow, elevators like this one will undoubtedly shape our cities and buildings for years to come, promising a brighter, more accessible future.
