HLC-20-4 Passenger Elevator
EMI Available
Model: HLC-20-4
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

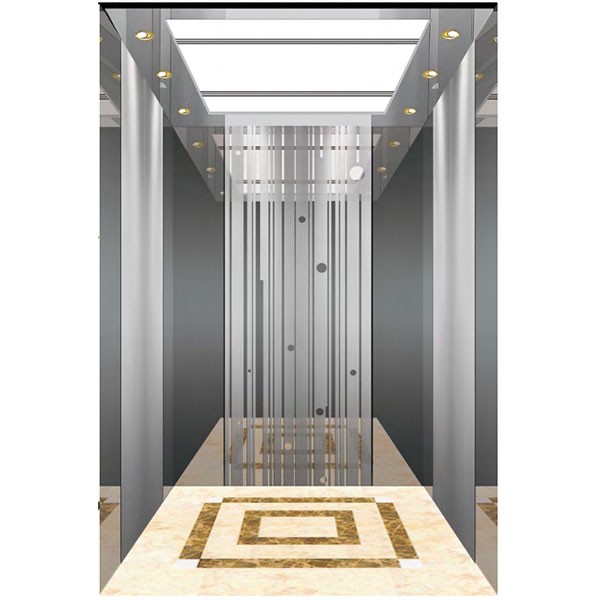

Car Design

Sandblasting Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Sandblasting Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Sandblasting Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Sandblasting Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm


Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.



Elevate Your Space with the HLC-20-4 450kg 6 Passenger Elevator

In today's urban environments, where every square inch of space is precious, efficient vertical transportation is paramount. The HLC-2020-4 450kg 6 Passenger Elevator is a tailored solution designed to meet the specific needs of compact spaces. Whether you manage a small commercial building, a cozy residential complex, or any area where space optimization is crucial, this blog will introduce you to the remarkable features and benefits of the HLC-2020-4.

    Space Optimization:

      The HLC-2020-4 Passenger Elevator is ingeniously designed to make the most of your available space. With a compact footprint, it ensures efficient vertical transportation within your building, making it a superb choice for settings where space utilization is essential.

        Passenger Capacity:

          Despite its compact design, this elevator can comfortably transport up to six passengers or handle a maximum load of 450kg. It's an ideal solution for areas with low to moderate passenger traffic, ensuring both comfort and efficiency.

            Safety First:

              Safety is a non-negotiable aspect of any elevator, and the HLC-2020-4 takes this responsibility seriously. Equipped with a range of safety features, including emergency brakes, fire service mode, and reliable interlocks, it prioritizes passenger safety at all times.

                Smooth and Silent Operation:

                  Thanks to a state-of-the-art traction system and noise-reducing components, this elevator ensures a smooth and quiet ride. The minimization of noise ensures minimal disturbances within your building, offering a comfortable and peaceful experience for passengers.

                    Energy Efficiency:

                      With a focus on sustainability, the HLC-2020-4 integrates LED lighting and a regenerative drive system, resulting in reduced energy consumption and operational costs. This eco-friendly approach not only benefits the environment but also your financial bottom line.

                        Customization Options:

                          Despite its compact design, this elevator offers a range of customization options. You can choose from various cabin finishes, materials, and lighting options to personalize its appearance, ensuring it seamlessly blends with your building's aesthetics.

                            User-Friendly Controls:

                              The elevator's control panel is intuitive and user-friendly, ensuring passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status enhances transparency and convenience.

                                Low Maintenance and High Reliability:

                                  With proper maintenance and regular service, the HLC-2020-4 450kg 6 Passenger Elevator is designed to provide years of reliable performance. Its self-diagnostic system can detect potential issues before they become major problems, reducing downtime and ensuring a smooth operational experience.

                                  Conclusion

                                  The HLC-2020-4 450kg 6 Passenger Elevator is a versatile and efficient solution that caters to the specific needs of your compact building. Whether you're managing a small commercial establishment or a boutique residential space, this elevator solution is designed to elevate your space in every sense. Enhance your building's mobility and efficiency with the HLC-2020-4, providing your occupants with a reliable and efficient means of vertical transportation that sets new standards for convenience and performance. Elevate your small space with the HLC-2020-4 and make every journey a seamless and comfortable experience.
