HLC-20-5 Passenger Elevator
EMI Available
Model: HLC-20-5
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

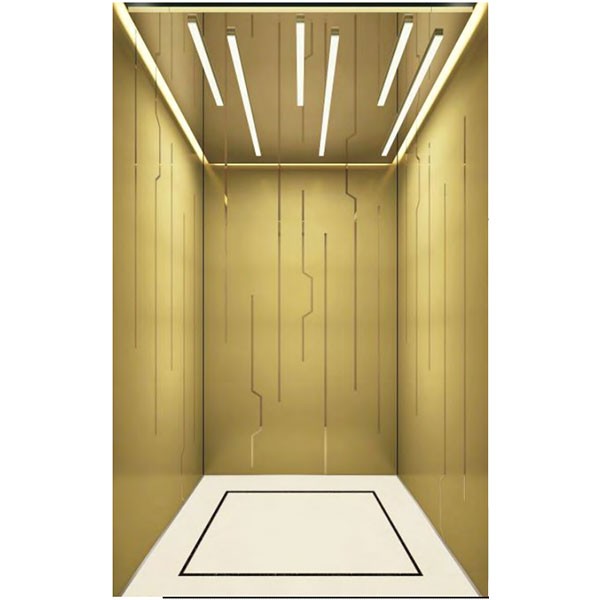

3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Sandblasted Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Sandblasted Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Sandblasted Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Sandblasted Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Efficiency and Comfort with the HLC-20-5 630kg 8 Passenger Elevator

In today's bustling urban landscapes, efficient vertical transportation is key to the smooth operation of various buildings, from residential complexes to commercial spaces. The HLC-2020-5 630kg 8 Passenger Elevator is designed to meet these demands, offering a solution that combines efficiency, safety, and comfort. Whether you're managing a bustling commercial space, a mid-sized residential complex, or any building that requires reliable vertical mobility, this blog will introduce you to the exceptional features and benefits of the HLC-2020-5.

    Space and Capacity:

      The HLC-2020-5 Passenger Elevator is thoughtfully designed to optimize space utilization while providing an impressive capacity. With the ability to transport up to eight passengers or handle a maximum load of 630kg, it's a versatile choice for various settings, ensuring both comfort and efficiency.

        Emphasis on Safety:

          Safety is a top priority when it comes to elevators, and the HLC-2020-5 takes this seriously. Equipped with advanced safety features, including emergency brakes, fire service mode, and dependable interlocks, this elevator ensures passenger safety at all times. It complies with international safety standards, offering peace of mind.

            Smooth and Silent Operation:

              The elevator features a modern traction system and noise-reducing components, delivering a smooth and silent ride. The minimization of noise ensures minimal disturbances within your building, offering a comfortable and peaceful experience for passengers.

                Energy Efficiency:

                  With a focus on sustainability, the HLC-2020-5 integrates LED lighting and a regenerative drive system, reducing energy consumption and operational costs. This eco-friendly approach not only benefits the environment but also your financial bottom line.

                    Customization Options:

                      Every building has its unique design and aesthetic requirements, and the HLC-2020-5 Elevator can be customized to match your specific needs. Various cabin finishes, materials, and lighting options are available to seamlessly blend with your interior decor.

                        User-Friendly Controls:

                          The elevator's control panel is intuitive and user-friendly, ensuring passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status enhances transparency and convenience.

                            Low Maintenance and High Reliability:

                              With regular maintenance and expert service, the HLC-2020-5 630kg 8 Passenger Elevator is designed to provide years of reliable performance. Its self-diagnostic system can detect potential issues before they escalate, reducing downtime and ensuring a smooth operational experience.

                              Conclusion:

                              The HLC-2020-5 630kg 8 Passenger Elevator is a testament to modern engineering and design, offering a balanced approach to space, safety, energy efficiency, and customization. Whether you're a property manager, architect, or building owner, this elevator solution enhances the overall experience within your space while adhering to the highest safety standards. Elevate your building's mobility with the HLC-2020-5 Elevator, providing your occupants with a state-of-the-art vertical transportation experience that redefines convenience and performance. Elevate your building, elevate your experience.
