HLC-20-8 Passenger Elevator
EMI Available
Model: HLC-20-8
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

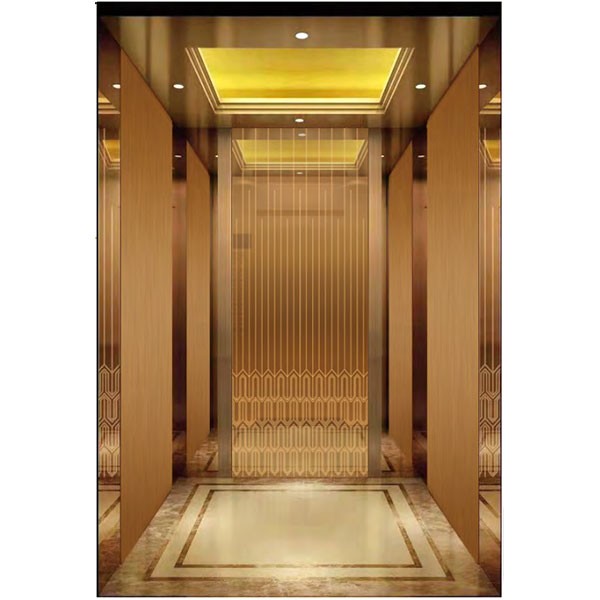

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevating Spaces with the HLC-20-8 450kg 6 Passenger Elevator

Elevators have become an integral part of modern urban life, allowing people to move seamlessly between floors in various buildings. From residential complexes to commercial spaces and even industrial settings, elevators serve as a crucial mode of transportation. The HLC-2020-8 450kg 6 Passenger Elevator is a testament to innovation and efficiency, designed to enhance the vertical transportation experience. In this blog post, we'll explore the key features and benefits of this remarkable elevator model.

    Compact and Space-Efficient Design

      The HLC-2020-8 elevator is specifically engineered for spaces where maximizing floor area is essential. Its compact design allows it to fit into smaller buildings, ensuring that no space is wasted. With a 450kg load capacity, this elevator is perfect for low- to mid-rise buildings such as small offices, boutique hotels, and residential complexes.

        Ideal for Smaller Groups

          This elevator model is optimized for efficiency in moving smaller groups of people. With a passenger capacity of 6, it ensures quick and convenient transportation, making it perfect for situations where the elevator is not heavily crowded. This efficiency is particularly valuable in environments like apartment buildings, where residents want a hassle-free experience.

            Advanced Safety Features

              Safety is a top priority in elevator design, and the HLC-2020-8 is equipped with advanced safety features to ensure passenger well-being. These features include:

              • Emergency communication system: In case of any issues or emergencies, passengers can quickly communicate with building management or emergency services.
              • Emergency stop button: Passengers can halt the elevator's operation in case of an emergency.
              • Overload protection: Sensors detect any overloading, preventing the elevator from moving until the excess weight is removed.
              • Automatic door reopening: The elevator doors automatically reopen if an obstruction is detected, enhancing safety and preventing accidents.

                Energy Efficiency

                  Energy-efficient technology is incorporated into the HLC-2020-8 elevator's design. With energy-saving features, this model not only reduces operational costs but also contributes to environmental sustainability. By consuming less energy, it lessens the building's carbon footprint, making it an eco-conscious choice for today's environmentally aware customers.

                    Customization Options

                      Every building has its unique aesthetic and functional requirements, and the HLC-2020-8 elevator can be customized to meet your specific needs. Whether you want a modern, sleek design that complements your building's style or a more classic look, customization options are available to ensure the elevator blends seamlessly with its surroundings.

                        Low Maintenance Requirements

                          Regular maintenance is vital to ensure the long-term performance of any elevator. The HLC-2020-8 elevator is designed with accessibility and serviceability in mind, making it easier for technicians to conduct routine maintenance. This feature not only ensures smooth and reliable operation but also minimizes downtime.

                          Conclusion

                          The HLC-2020-8 450kg 6 Passenger Elevator is a game-changer in the world of vertical transportation for smaller buildings. Its compact design, advanced safety features, energy efficiency, customization options, and low maintenance requirements make it the ideal choice for spaces where maximizing efficiency and safety is paramount. Investing in the HLC-2020-8 elevator means elevating your space, ensuring the comfort, safety, and satisfaction of the people who use it. Upgrade your building's transportation experience with the HLC-2020-8 and enjoy a seamless and efficient vertical transportation solution.
