HLC-22-102 Passenger Elevator
EMI Available
Model: HLC-22-102
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

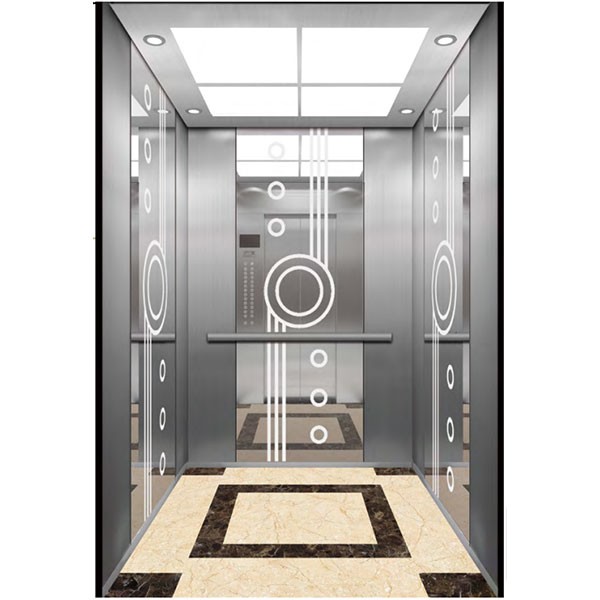

Car Design

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Comfort and Efficiency with the HLC-22-102 630kg 8 Passenger Elevator

In today's fast-paced world, efficient vertical transportation is essential for any building, be it a commercial space or a residential complex. The HLC-2022-102 630kg 8 Passenger Elevator is designed to meet these demands with a focus on comfort, safety, and efficiency. In this blog, we'll delve into the exceptional features and benefits of this impressive elevator solution, designed to redefine how we experience vertical mobility.

    Space and Capacity:

      The HLC-2022-102 Passenger Elevator combines efficient space utilization with the capability to transport up to 8 passengers or handle a maximum load of 630kg. This balance makes it an ideal choice for a range of settings, ensuring both comfort and efficiency.

        Safety Features:

          Safety is of utmost importance when it comes to elevators, and the HLC-2022-102 doesn't compromise. Equipped with advanced safety features, including emergency brakes, fire service mode, and reliable interlocks, this elevator ensures the well-being of passengers at all times. It adheres to international safety standards, providing peace of mind.

            Smooth and Silent Ride:

              The elevator boasts a modern and efficient traction system, delivering a smooth and quiet ride. Noise-reducing features guarantee minimal disruption to your building's occupants, providing a pleasant and comfortable experience for all passengers.

                Energy Efficiency:

                  The HLC-2022-102 focuses on energy efficiency to minimize its environmental footprint. With LED lighting and a regenerative drive system, it reduces power consumption, helping to cut operational costs while contributing to a more sustainable future.

                    Customization Options:

                      Every building has its unique design and aesthetic requirements, and the HLC-2022-102 Elevator can be customized to match your specific needs. You can choose from various cabin finishes, materials, and lighting options to blend seamlessly with your interior decor.

                        User-Friendly Control Panel:

                          The elevator is equipped with an intuitive and user-friendly control panel, ensuring that passengers of all ages and abilities can operate it easily. The system provides real-time information on the elevator's status, ensuring transparency and convenience.

                            Maintenance and Reliability:

                              With regular maintenance and expert service, the HLC-2022-102 Passenger Elevator is built to provide years of reliable performance. It features a self-diagnostic system that can alert technicians to potential issues before they become significant problems, minimizing downtime and maximizing operational efficiency.

                              Conclusion

                              The HLC-2022-102 630kg 8 Passenger Elevator is a testament to modern engineering and design, offering a balanced approach to space, safety, energy efficiency, and customization. Whether you're a property manager, architect, or building owner, this elevator solution can enhance the overall experience within your space while adhering to the highest safety standards. Elevate your building's mobility with the HLC-2022-102 Elevator, and provide your occupants with a state-of-the-art vertical transportation experience that redefines convenience and performance.
