HLC-22-103 Passenger Elevator
EMI Available
Model: HLC-22-103
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

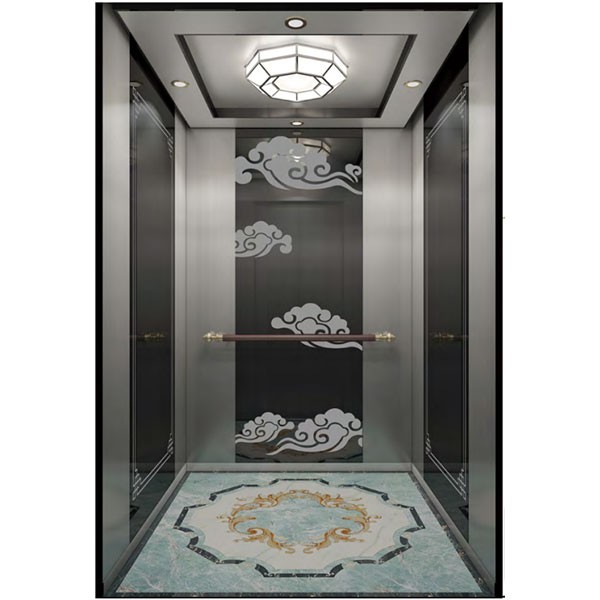

Car Design

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Rose gold, champagne gold.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building's Vertical Mobility with the HLC-22-103 800kg 10 Passenger Elevator

In today's bustling urban landscape, efficiency and reliability in vertical transportation have never been more critical. The HLC-2022-103 800kg 10 Passenger Elevator is here to meet these demands head-on. Whether you manage a busy commercial space, a residential complex, or any building that requires efficient vertical transportation, this blog explores the remarkable features and advantages of the HLC-2022-103.

    Ample Space and Capacity:

      The HLC-2022-103 Passenger Elevator combines efficient space utilization with a generous capacity to transport up to 10 passengers or handle a maximum load of 800kg. This versatile balance is ideal for a wide range of settings, ensuring both comfort and efficiency.

        Emphasis on Safety:

          Safety is a top priority when it comes to elevators, and the HLC-2022-103 doesn't compromise. Equipped with advanced safety features, including emergency brakes, fire service mode, and reliable interlocks, this elevator prioritizes passenger safety at all times. It complies with international safety standards, offering peace of mind to building occupants.

            Smooth and Silent Operation:

              The elevator boasts a modern traction system and noise-reducing features, delivering a smooth and quiet ride. The minimization of noise ensures minimal disruptions within your building, offering a pleasant and comfortable experience for passengers.

                Energy Efficiency:

                  With a focus on sustainability, the HLC-2022-103 integrates LED lighting and a regenerative drive system to reduce power consumption. This not only helps reduce operational costs but also contributes to a greener and more environmentally friendly approach to vertical transportation.

                    Customization Options:

                      Every building has its unique design and aesthetic requirements, and the HLC-2022-103 Elevator can be customized to match your specific needs. Various cabin finishes, materials, and lighting options are available to seamlessly blend with your interior decor.

                        User-Friendly Control Panel:

                          The elevator features an intuitive and user-friendly control panel that ensures passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status enhances transparency and convenience.

                            Low Maintenance and High Reliability:

                              With proper maintenance and regular service, the HLC-2022-103 800kg 10 Passenger Elevator is designed to provide years of reliable performance. Its self-diagnostic system can detect potential issues before they become major problems, reducing downtime and ensuring a smooth operational experience.

                              Conclusion

                              The HLC-2022-103 800kg 10 Passenger Elevator represents a cutting-edge approach to space, safety, energy efficiency, and customization. Whether you are a property manager, architect, or building owner, this elevator solution enhances the overall experience within your space while adhering to the highest safety standards. Elevate your building's vertical mobility with the HLC-2022-103 Elevator, providing your occupants with a state-of-the-art vertical transportation experience that redefines convenience and performance. Elevate your building, elevate your experience.
