HLC-22-104 Passenger Elevator
EMI Available
Model: HLC-22-104
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

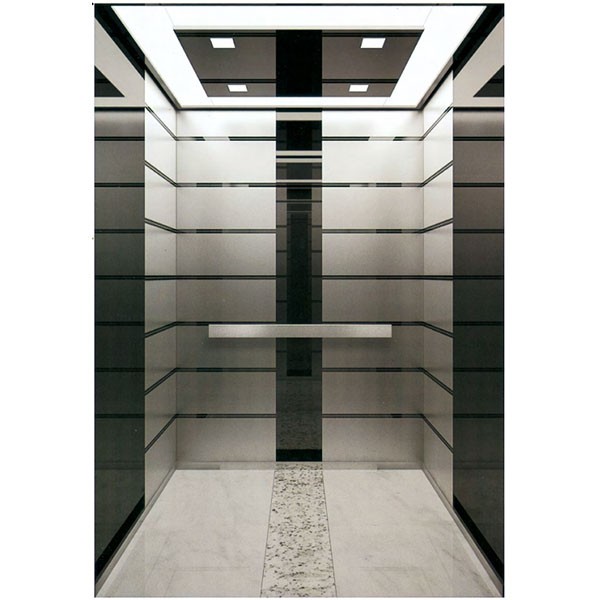

Car Design

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Sandblasted Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Space with the HLC-22-104 1000kg 13 Passenger Elevator

In the modern world of vertical transportation, the need for efficient and reliable mobility within buildings is greater than ever. The HLC-2022-104 1000kg 13 Passenger Elevator is the answer to these requirements. Whether you manage a bustling commercial space, a high-rise residential complex, or any building that demands top-tier vertical transportation, this blog explores the remarkable features and benefits of the HLC-2022-104.

    Space and Capacity:

      The HLC-2022-104 Passenger Elevator is designed for efficient space utilization and boasts a generous capacity. It can transport up to 13 passengers or handle a maximum load of 1000kg, making it ideal for a wide range of settings, ensuring both comfort and efficiency.

        Safety First:

          Safety is of utmost importance when it comes to elevators, and the HLC-2022-104 doesn't compromise. It is equipped with advanced safety features, including emergency brakes, fire service mode, and reliable interlocks, ensuring passenger safety is never in question. It adheres to international safety standards, providing peace of mind.

            Smooth and Silent Operation:

              The elevator features a modern traction system and noise-reducing components, delivering a smooth and quiet ride. The minimization of noise ensures minimal disruptions within your building, offering a pleasant and comfortable experience for passengers.

                Energy Efficiency:

                  With a focus on sustainability, the HLC-2022-104 integrates LED lighting and a regenerative drive system, reducing energy consumption and operational costs. This eco-friendly approach not only benefits the environment but also your financial bottom line.

                    Customization Options:

                      Each building has its unique design and aesthetic requirements, and the HLC-2022-104 Elevator can be customized to match your specific needs. Various cabin finishes, materials, and lighting options are available to seamlessly blend with your interior decor.

                        User-Friendly Control Panel:

                          The elevator's control panel is intuitive and user-friendly, ensuring passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status enhances transparency and convenience.

                            Low Maintenance and High Reliability:

                              With regular maintenance and expert service, the HLC-2022-104 1000kg 13 Passenger Elevator is built to provide years of reliable performance. Its self-diagnostic system can detect potential issues before they become major problems, reducing downtime and ensuring a smooth operational experience.

                              Conclusion

                              The HLC-2022-104 1000kg 13 Passenger Elevator represents a forward-thinking approach to space, safety, energy efficiency, and customization. Whether you're a property manager, architect, or building owner, this elevator solution enhances the overall experience within your space while adhering to the highest safety standards. Elevate your building's vertical transportation with the HLC-2022-104 Elevator, providing your occupants with a state-of-the-art vertical mobility experience that redefines convenience and performance. Elevate your building, elevate your experience.
