800kg 10 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "[email protected] "or" [email protected]"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 800 kg / 10 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 1960 mm (W)x 2000 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |

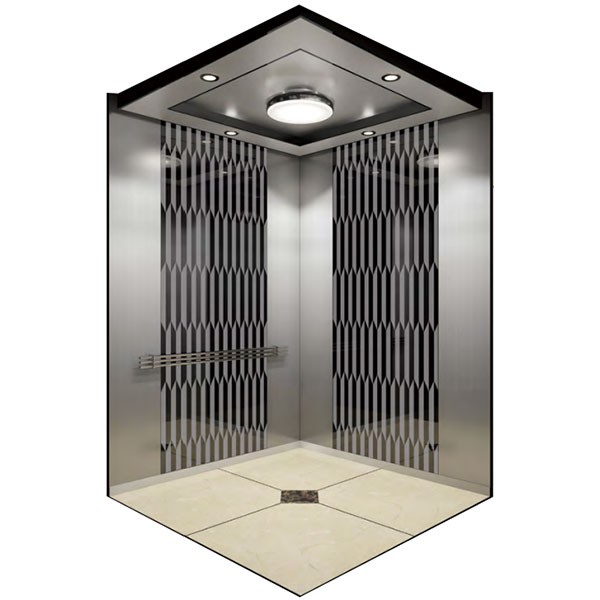

3. CAR SPECIFICATION: | |
Car Internal Dimension | 1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size |
Car Design | Black Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Black Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Black Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Black Titanium Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, titanium gold, concave gold, Rose gold, champagne gold.
Landing Door Decoration:
We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.
Elevate Your Building with the HLC-22-107 800kg 10 Passenger Elevator
In the rapidly evolving world of vertical transportation, efficiency, safety, and comfort are essential for any building. The HLC-2022-107 800kg 10 Passenger Elevator is a cutting-edge solution designed to meet these demands. Whether you're managing a bustling commercial space, a thriving residential complex, or any building that needs efficient vertical mobility, this blog will introduce you to the remarkable features and benefits of the HLC-2022-107.
Spacious Design and Impressive Capacity:
The HLC-2022-107 Passenger Elevator is meticulously designed for optimal space utilization while offering a substantial capacity. With the ability to transport up to 10 passengers or handle a maximum load of 800kg, it's the perfect choice for various settings, ensuring both comfort and efficiency.
Top-Notch Safety Features:
Safety is paramount when it comes to elevators, and the HLC-2022-107 doesn't compromise in this regard. Equipped with advanced safety features, including emergency brakes, fire service mode, and dependable interlocks, it prioritizes passenger safety at all times. It meets international safety standards, ensuring peace of mind.
Smooth and Quiet Operation:
The elevator is equipped with a state-of-the-art traction system and noise-reducing components, delivering a smooth and silent ride. This minimizes disturbances within your building, offering a comfortable and peaceful experience for passengers.
Energy Efficiency:
With a focus on sustainability, the HLC-2022-107 integrates LED lighting and a regenerative drive system, reducing energy consumption and operational costs. This environmentally conscious approach not only benefits the environment but also your budget.
Customization Options:
Every building has its unique design and aesthetic requirements, and the HLC-2022-107 Elevator can be customized to match your specific needs. Various cabin finishes, materials, and lighting options are available to seamlessly blend with your interior decor.
User-Friendly Controls:
The elevator's control panel is intuitive and user-friendly, ensuring passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status enhances transparency and convenience.
Low Maintenance and High Reliability:
With regular maintenance and expert service, the HLC-2022-107 800kg 10 Passenger Elevator is designed to provide years of reliable performance. Its self-diagnostic system can detect potential issues before they become major problems, reducing downtime and ensuring a smooth operational experience.
Conclusion
The HLC-2022-107 800kg 10 Passenger Elevator represents a leap forward in space-efficient, safe, and energy-conscious vertical transportation. Whether you're a property manager, architect, or building owner, this elevator solution enhances the overall experience within your space while adhering to the highest safety standards. Elevate your building's vertical mobility with the HLC-2022-107 Elevator, providing your occupants with a state-of-the-art vertical transportation experience that redefines convenience and performance. Elevate your building, elevate your experience.
