450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"

Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	450 kg / 6 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	1650 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Hairline Titanium Mirror Etching Finish
Car Wall (Front Wall)	Hairline Titanium Mirror Etching Finish
Car Wall (Side Wall)	Hairline Titanium Mirror Etching Finish
Car Wall (Real Wall)	Hairline Titanium Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

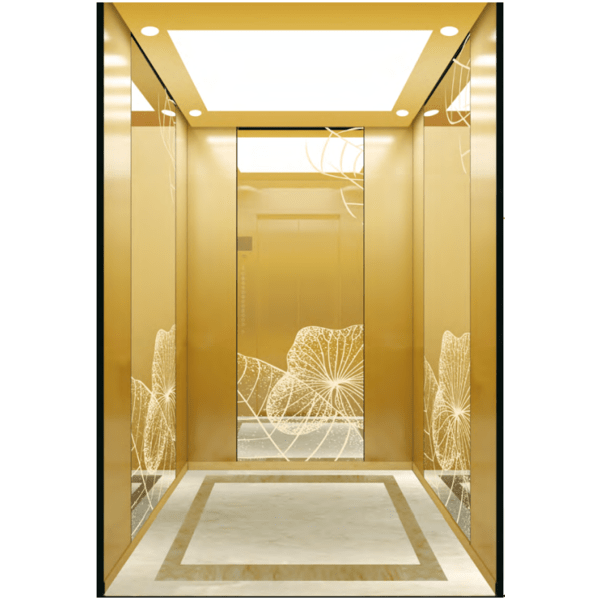

The HLC-22-33 Passenger Elevator cabin is a prime example of modern sophistication and versatility. The central plate of the cabin boasts a sleek and timeless titanium finish, with a mirror-like surface that's etched to create a unique texture, blending luxury with contemporary design.

Complementing this striking centerpiece is the auxiliary plate, which features a refined hairline titanium finish, adding an extra layer of elegance to the cabin's overall aesthetics.

What makes this elevator cabin truly exceptional is its extensive customization options. In addition to the titanium finish, you can choose from a range of other finishes, including natural color for a more understated appearance, concave gold for added depth, rose gold for a touch of warmth, champagne gold for a touch of luxury, and black titanium for a bold and modern aesthetic. These choices allow you to tailor the elevator cabin to perfectly match the style and atmosphere of your building, ensuring a unique and personalized vertical transportation experience.
