HLC-22-35 Passenger Elevator

EMI Available

Model: HLC-22-35

Brand: HAYASHIMU

0.00 0.00

800kg 10 Passenger Elevator!

1. GENERAL DATA
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	800 kg / 10 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months

2. SHAFT SPECIFICATION:
Shaft Size	1960 mm (W)x 2000 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm

3. CAR SPECIFICATION:
Car Internal Dimension	1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

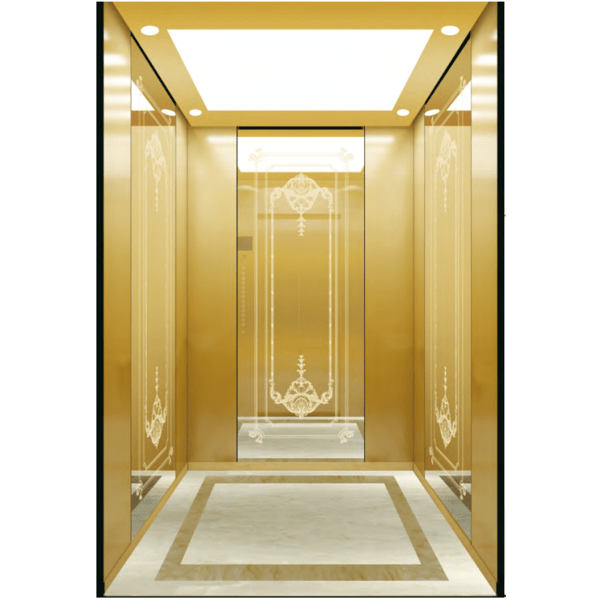

Car Design	Hairline Titanium Mirror Etching Finish
Car Wall (Front Wall)	Hairline Titanium Mirror Etching Finish
Car Wall (Side Wall)	Hairline Titanium Mirror Etching Finish
Car Wall (Real Wall)	Hairline Titanium Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm
