450kg 6 Passenger Elevator

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"

Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA:
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	450 kg / 6 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	1650 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

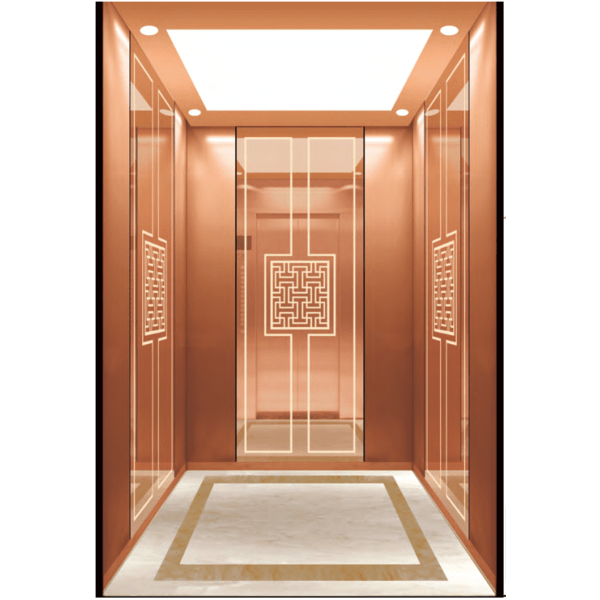

The HLC-22-41 Passenger Elevator is the epitome of excellence in vertical transportation. This elevator seamlessly merges modern technology with timeless elegance, setting a new standard for accessibility and aesthetics in your building.

As you step into the cabin, you'll be immediately captivated by the meticulously designed interior. The center plate is a work of art, adorned with a brilliant mirror finish, delicately etched, and drenched in a luxurious rose gold hue. To complement this opulent centerpiece, the auxiliary board is finished with a captivating hairline texture, sharing the same radiant rose gold color.

What truly sets this elevator apart is its remarkable adaptability. The cabin's design pattern can be tailored to your preferences, offering a range of finishes, including natural color, titanium gold, concave gold, Champagne gold, and black titanium. Beyond its aesthetic allure, the HLC-22-41 Passenger Elevator is a testament to precision engineering, making it the ideal choice for those who demand both top-tier performance and a touch of luxury in their vertical mobility solution. Elevate not only your building's accessibility but also its interior aesthetics with this extraordinary passenger elevator.
