450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"

Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA:
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	450 kg / 6 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	1650 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

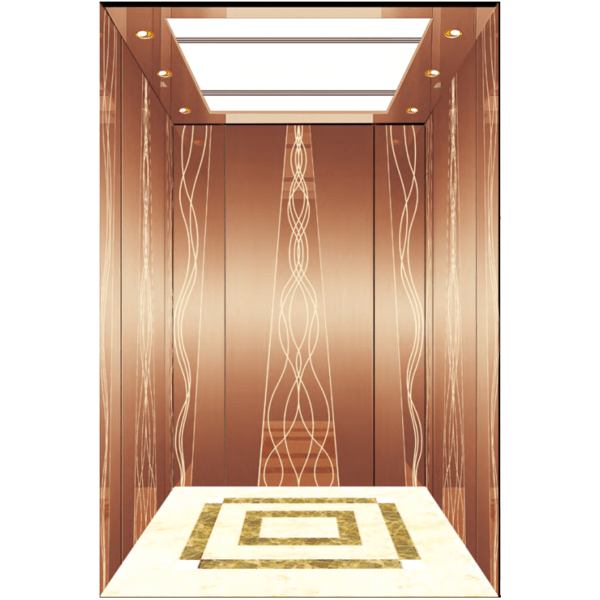

The HLC-22-45 Passenger Elevator Cabin is a sophisticated and stylish elevator cabin designed to enhance the overall aesthetic and user experience of vertical transportation. Its distinctive features include a center plate finished in a luxurious mirror-like surface with an elegant rose gold etching, creating a striking visual impact. The auxiliary board complements the design with a hairline texture also in rose gold.

Notably, this cabin offers customization options, allowing the pattern to be processed in various finishes such as natural color, titanium gold, concave gold, champagne gold, and black titanium. This flexibility ensures that the HLC-22-45 Passenger Elevator Cabin can be tailored to match a variety of interior design preferences while maintaining a sense of opulence and modernity. It promises both functionality and aesthetics, making it an excellent choice for elevators in upscale settings.
