HLC-22-50 Passenger Elevator
EMI Available
Model: HLC-22-50
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"


Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA:



Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:



Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:



Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.


Landing Door Decoration:

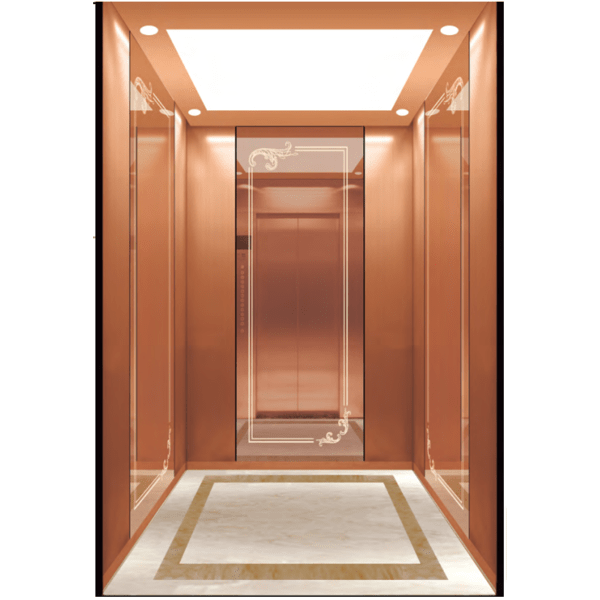

The HLC-22-50 Passenger Elevator Cabin sets a new standard for sophistication and utility in vertical transportation. Its center plate is a work of art, boasting a mirror-like finish adorned with intricate rose gold etching, which adds an unmistakable touch of luxury and elegance to the cabin's interior.
Complementing this lavish design, the auxiliary board features a refined rose gold hairline texture, further enhancing the cabin's overall aesthetic appeal.
One of the standout features of this elevator cabin is its exceptional versatility. The pattern can be customized to suit various finishes, including natural color, titanium gold, concave gold, Champagne gold, and black titanium. This adaptability allows you to seamlessly integrate the elevator cabin with your interior decor, ensuring a seamless fusion of opulence and functionality in your building's vertical transportation system. The HLC-22-50 Passenger Elevator Cabin is the epitome of modern luxury, making it a perfect choice for a wide range of upscale settings.
