1000kg 13 Passenger Elevator

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Complete Imported & Brand New Product.

Product Specification:

1.GENERAL DATA:
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	1000 kg / 13 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	2050 mm (W)x 2050 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

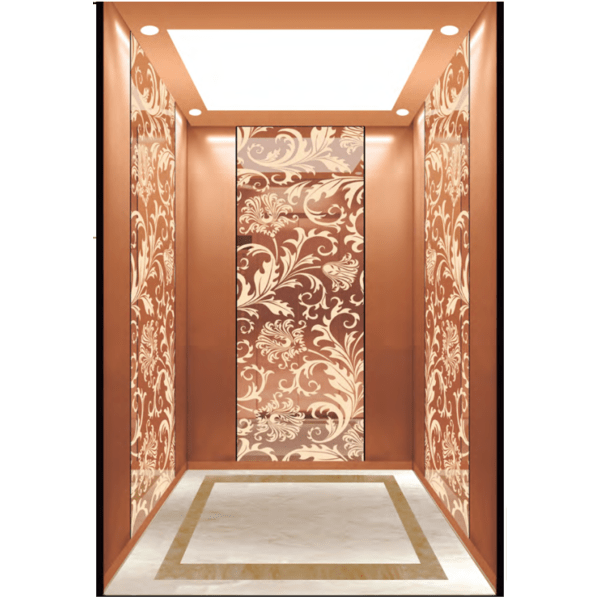

The HLC-22-54 Passenger Elevator cabin is a testament to the fusion of modern aesthetics and functionality. At its core, the center plate is a visual masterpiece, featuring a mirror finish embellished with intricate rose gold etching. This design creates an ambiance of opulence and sophistication within the elevator cabin, making every ride a luxurious experience.

The auxiliary board of the cabin is equally impressive, boasting a sleek hairline finish in the same captivating rose gold hue. The attention to detail is evident throughout, ensuring that passengers enjoy an environment that exudes elegance and comfort.

What sets the HLC-22-54 cabin apart is its versatility. This pattern can be customized to align with your specific preferences. Choose from a spectrum of captivating color options, including natural color for a timeless look, titanium gold for a touch of regal sophistication, concave gold for added depth, Champagne gold for a warm and inviting atmosphere, and black titanium for a sleek and modern finish. This level of customization allows you to harmonize the elevator cabin with the overall style and atmosphere of your building, creating a seamless and impressive passenger experience that defines modern luxury. Elevate your vertical mobility with the HLC-22-54 cabin, where every detail has been carefully considered to leave an indelible impression of refined opulence.
