630kg 8 Passenger Elevator

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Complete Imported & Brand New Product.

Product Specification:

1.GENERAL DATA:
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	630 kg / 8 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	1850 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

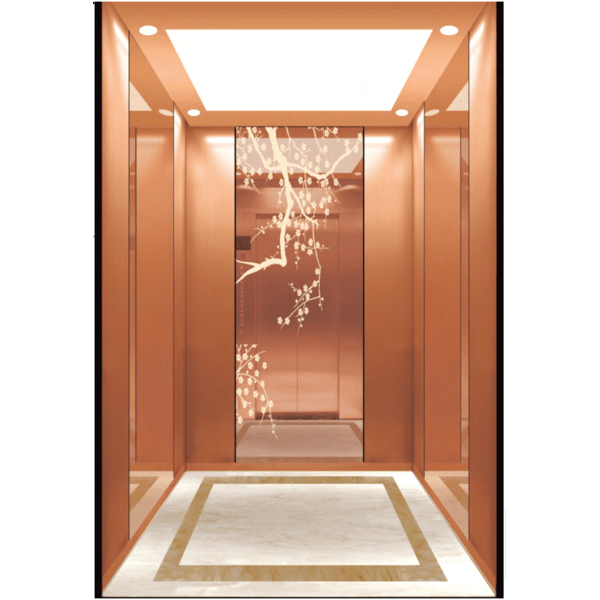

The HLC-22-56 Passenger Elevator cabin is the epitome of contemporary elegance and technological excellence. The centerpiece of this cabin is a visual masterpiece, featuring a mirror-finished center plate adorned with intricate rose gold etching. This design not only adds a touch of opulence but also creates an atmosphere of sophistication within the elevator, making every ride a luxurious and memorable experience.

The auxiliary board, finished with a sleek hairline texture in the same enchanting rose gold, complements the cabin's aesthetics seamlessly, enhancing the overall sense of refinement and luxury.

What sets the HLC-22-56 cabin apart is its remarkable adaptability. This captivating pattern can be customized to align with your distinct preferences and the design of your building. Choose from a diverse selection of exquisite color options, including natural color for a timeless, classic look, titanium gold for a touch of regal elegance, concave gold for added depth and allure, Champagne gold for a warm and inviting ambiance, or black titanium for a sleek and modern finish. This level of customization allows you to harmonize the elevator cabin with the style and atmosphere of your building, ensuring passengers experience a journey that is both functional and aesthetically pleasing.

With the HLC-22-56 cabin, every detail has been thoughtfully crafted to leave a lasting impression of refined opulence and modern luxury. Elevate your vertical mobility experience to new heights with the HLC-22-56, where technology meets sophistication in a harmonious blend.
