HLC-22-57 Passenger Elevator
EMI Available
Model: HLC-22-57
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator.

Product Specification:- Complete Imported & Brand New Product.

1. GENERAL DATA:



Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:



Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:



Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, rose gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

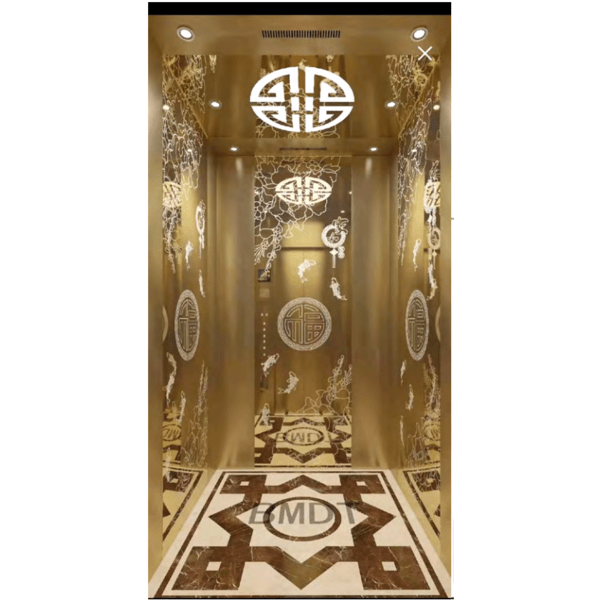

The HLC-22-57 Passenger Elevator cabin is the epitome of modern sophistication and innovation. Its centerpiece, the center plate, is a stunning example of contemporary design, featuring a mirror finish with a refined titanium surface, providing a sleek and cutting-edge aesthetic. The intricate etching further enhances the cabin's visual appeal, creating an atmosphere of refined luxury that elevates every elevator ride.
The auxiliary plate, also finished with a sleek hairline texture in titanium, complements the cabin's aesthetics seamlessly, adding to the overall sense of contemporary elegance and opulence.
What makes the HLC-22-57 cabin even more exceptional is its versatility. This captivating pattern can be customized to match your unique preferences and the specific design of your building. Choose from an array of stunning color options, including natural color for a timeless and classic look, rose gold for a touch of elegance, concave gold for added depth and allure, Champagne gold for a warm and inviting ambiance, or black titanium for a sleek and modern finish. This level of customization ensures that the elevator cabin seamlessly integrates with the style and atmosphere of your building, providing passengers with a journey that is both visually striking and functionally exceptional.
With the HLC-2022-57 cabin, every detail has been thoughtfully designed to leave a lasting impression of contemporary opulence and technological excellence. Elevate your vertical mobility experience with the HLC-22-57, where sophistication meets innovation in perfect harmony.
