HLC-22-67 Passenger Elevator
EMI Available
Model: HLC-22-67
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

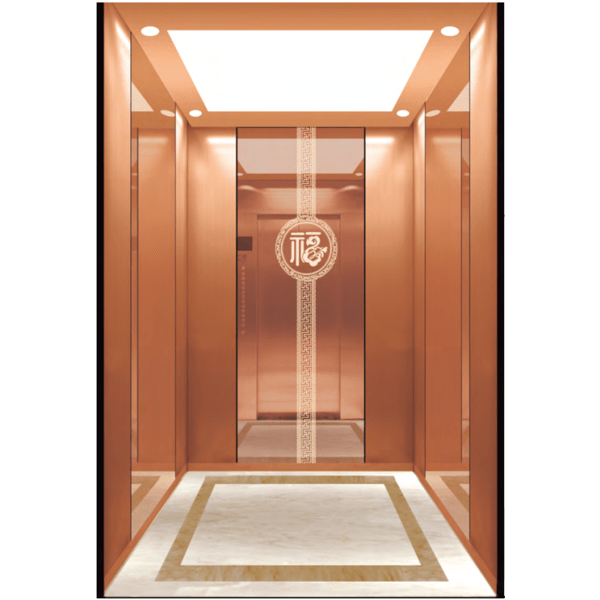

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building's Vertical Experience with the HLC-22-67 Passenger Elevator

In today's modern world, elevators have become more than just a means of transportation within buildings. They're a reflection of a building's style, efficiency, and commitment to the well-being of its occupants. The HLC-2022-67 Passenger Elevator is the latest testament to the evolution of vertical mobility. In this short blog, we'll explore the features and advantages of this innovative elevator that takes your building's vertical transportation to new heights.

Efficiency and Speed:

The HLC-2022-67 Passenger Elevator is engineered to provide an efficient and swift vertical transportation experience. Equipped with advanced technology and a powerful motor, it ensures smooth and rapid travel between floors. Reduced waiting times and seamless transitions elevate the overall passenger experience.

Safety at Its Core:

Safety is a paramount concern in elevator design, and the HLC-2022-67 Passenger Elevator is no exception. It comes with a suite of safety features, including emergency stop buttons, fire-resistant materials, and automatic rescue devices. Passengers can ride with confidence, knowing that their well-being is a top priority.

Customization Options:

Recognizing the uniqueness of each building, this elevator offers a range of customization options. From cabin interiors to lighting and finishes, you have the flexibility to personalize the elevator to seamlessly align with your building's design and ambiance. It's more than just a mode of transportation; it's an integral part of your building's character.

Sustainability:

With a growing emphasis on sustainability, this elevator is designed with eco-friendly features. Energy-efficient components and systems minimize power consumption, reducing the elevator's environmental footprint. Choosing this eco-conscious option not only enhances your building's functionality but also contributes to a greener future.

Enhanced Property Value:

Installing the HLC-2022-67 Passenger Elevator can significantly boost your property's value. Prospective buyers or tenants are often willing to pay a premium for the convenience, efficiency, and luxury that this elevator provides.

Conclusion

The HLC-2022-67 Passenger Elevator represents a fusion of advanced technology and contemporary design, setting a new standard for vertical mobility. Whether you are an architect aiming to enhance a building's functionality or a homeowner looking to add a touch of luxury to your residence, this elevator is the answer.

Elevating your space with the HLC-2022-67 Passenger Elevator means more than just efficient transportation; it signifies your commitment to providing the best for your occupants. It's a testament to your dedication to their safety, comfort, and the overall experience within your building.

In an age where buildings are not merely structures but statements, the HLC-2022-67 Passenger Elevator makes a strong statement of sophistication and efficiency. Elevate your building to new heights, both literally and figuratively, with this extraordinary piece of vertical transportation technology.

Choose the HLC-2022-67 Passenger Elevator and experience the future of vertical mobility. It's time to redefine the way people move within your building, making every journey a seamless and stylish experience. Elevate with the best, elevate with HLC-2022-67.
