HLC-22-68 Passenger Elevator
EMI Available
Model: HLC-22-68
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

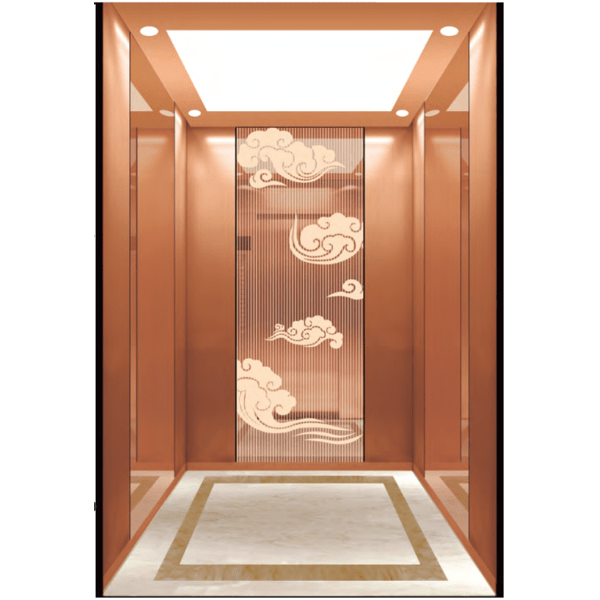

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building's Vertical Experience with the HLC-22-68 Passenger Elevator

In the fast-paced world of modern architecture, elevators have evolved from mere functional components to sophisticated statements of style, efficiency, and innovation. The HLC-2022-68 Passenger Elevator is the latest embodiment of this evolution, offering a harmonious blend of advanced technology and contemporary design. Let's take a closer look at the features and benefits that make this elevator a game-changer for vertical transportation.

Efficiency and Speed:

The HLC-2022-68 Passenger Elevator is engineered to provide an efficient and speedy vertical transportation experience. With cutting-edge technology and a robust motor, it ensures smooth and rapid travel between floors. Reduced waiting times and seamless transitions enhance the overall passenger experience, making it an ideal choice for busy buildings.

Safety at the Core:

Safety is paramount when designing elevators, and the HLC-2022-68 Passenger Elevator prioritizes passenger well-being. It comes equipped with a comprehensive set of safety features, including emergency stop buttons, fire-resistant materials, and automatic rescue devices. Passengers can ride with confidence, knowing that their safety is a top priority.

Customization and Aesthetics:

Recognizing the uniqueness of each building, this elevator offers a wide range of customization options. From cabin interiors to lighting and finishes, you have the flexibility to tailor the elevator's aesthetics to seamlessly match your building's design and ambiance. It's more than just transportation; it's an essential part of your building's character.

Sustainability:

In an era where sustainability is a top concern, this elevator is designed with eco-friendliness in mind. Energy-efficient components and systems minimize power consumption, reducing the elevator's environmental impact. By choosing this eco-conscious option, you not only enhance your building's functionality but also contribute to a greener future.

Enhanced Property Value:

Installing the HLC-2022-68 Passenger Elevator can significantly increase your property's value. Prospective buyers or tenants are often willing to pay a premium for the convenience, efficiency, and luxury that this elevator provides. It's an investment that not only elevates your building but also its market appeal.

Conclusion

The HLC-2022-68 Passenger Elevator is not just an elevator; it's a symbol of progress, efficiency, and style. Whether you're a property owner looking to impress clients or a homeowner seeking to enhance the living experience in your building, this elevator offers the perfect solution. It's time to elevate your vertical transportation experience and make a statement with the HLC-2022-68 Passenger Elevator. Elevate with sophistication and efficiency!
