HLC-22-80 Passenger Elevator
EMI Available
Model: HLC-22-80
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

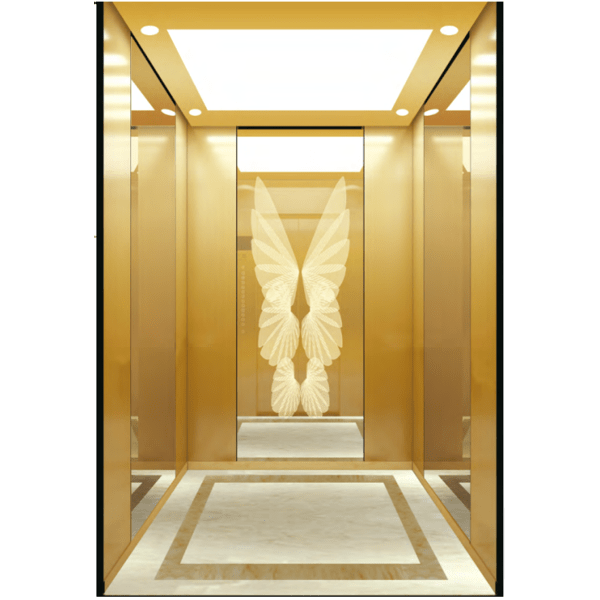

Car Design

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, rose gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-22-80 1000kg 13 Passenger Elevator

In today's fast-paced world, efficient and reliable vertical transportation has become a necessity for all types of buildings. Whether you manage a commercial complex, a residential tower, or a public facility, the choice of an elevator system can significantly impact the overall experience of the occupants. Enter the HLC-2022-80 1000kg 13 Passenger Elevator – an advanced vertical transportation solution that promises to elevate your building in terms of capacity, safety, and efficiency.

I. Introducing the HLC-2022-80 Elevator

The HLC-2022-80 elevator is a state-of-the-art passenger elevator that caters to the diverse needs of modern buildings. With a remarkable 1000kg capacity, this elevator can comfortably carry up to 13 passengers. It's not just an elevator; it's a symbol of convenience and reliability.

II. Safety Redefined

Safety is paramount in elevator design and operation. The HLC-2022-80 elevator is engineered with a range of cutting-edge safety features, including:

  1. Overload Protection: Advanced sensors detect if the elevator's weight limit is exceeded, preventing it from operating until the excess weight is removed.
  2. Emergency Stop Button: In case of an emergency, passengers can halt the elevator instantly, ensuring their safety.
  3. Door Safety Mechanisms: Smart door technology prevents closures if an obstruction is detected, offering an additional layer of safety during entry and exit.

III. Efficient and Seamless Operation

Efficiency is another key factor when it comes to elevators, and the HLC-2022-80 stands out with:

  1. Speed and Smoothness: This elevator's high-performance motor ensures a swift and seamless ride between floors, minimizing travel time.
  2. Energy Efficiency: Designed to be energy-efficient, the HLC-2022-80 helps reduce operational costs and minimize its environmental impact.
  3. Silent Operation: The elevator operates quietly, creating a peaceful and comfortable atmosphere within your building.

IV. Customization Options

Aesthetics are crucial in elevator design, and the HLC-2022-80 doesn't disappoint. Its sleek, modern design is customizable to match the interior of your building. Whether you prefer a classic or contemporary look, this elevator can be tailored to your exact specifications.

V. Maintenance and Support

Regular maintenance is essential to ensure the elevator continues to operate safely and efficiently. The HLC-2022-80 comes with a comprehensive maintenance and support package, offering peace of mind and long-term reliability.

Conclusion

The HLC-2022-80 1000kg 13 Passenger Elevator is a dependable, safe, and efficient vertical transportation solution that can take your building to new heights. With its impressive capacity, advanced safety features, and customizable design, it's the perfect choice for various types of buildings. Consider investing in this innovative elevator to provide your occupants with a comfortable, reliable, and safe means of vertical transportation, setting a new standard of excellence for your property. Elevate your building with the HLC-2022-80.
