HLC-22-82 Passenger Elevator
EMI Available
Model: HLC-22-82
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

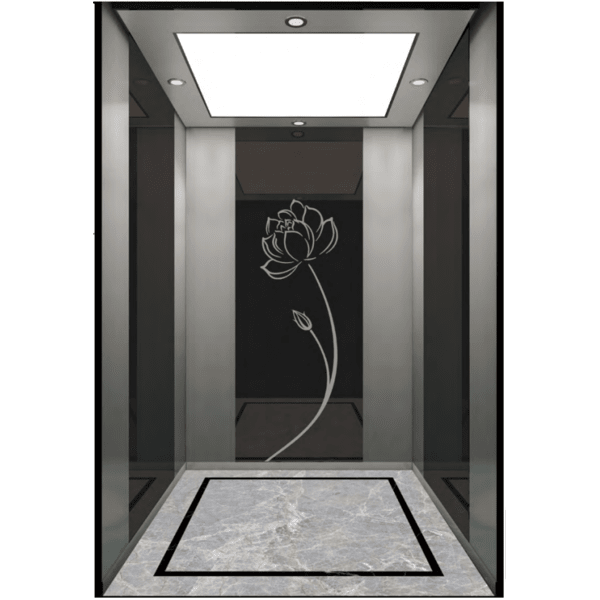

Car Design

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Black Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Rose gold, champagne gold.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building with the HLC-22-82 630kg 8 Passenger Elevator

Elevators have come a long way from being mere vertical transportation devices. They have become an integral part of modern buildings, enhancing accessibility and convenience. When it comes to choosing an elevator for your building, the HLC-22-82 630kg 8 Passenger Elevator is a top choice to consider. In this blog, we will explore the key features and benefits of this cutting-edge elevator designed to take your building to new heights, both literally and figuratively.

Increased Capacity

    One of the standout features of the HLC-22-82 elevator is its generous capacity. With the ability to accommodate up to eight passengers or a maximum weight of 630 kilograms, it's perfect for medium to large-sized buildings. This means that not only can more people ride the elevator at once, but it also makes it an ideal choice for transporting heavy or bulky items with ease.

      Safety and Reliability

        Safety is paramount when it comes to elevators, and the HLC-22-82 doesn't disappoint. It's equipped with advanced safety features to provide passengers with peace of mind during their journeys. Some of the safety features include:

        • Emergency stop buttons for immediate halting in case of any issues.
        • Overload protection to prevent exceeding the weight limit.
        • Fire-rated landing doors for enhanced fire safety.
        • Interlocks that ensure the doors open only when the elevator is at the designated floor.

        The HLC-22-82 elevator is designed for reliability and durability, reducing the likelihood of breakdowns and the associated inconvenience and maintenance costs.

          Modern Technology

            This elevator comes with state-of-the-art technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on the elevator's components. In addition, the LED lighting and digital floor display add a touch of modernity to your building, making it a standout feature for visitors and occupants.

              Customization Options

                No two buildings are the same, and the HLC-22-82 elevator can be customized to fit your specific needs. You have the flexibility to choose the cabin finishes, materials, and color schemes that align with your building's aesthetics. This level of customization allows your elevator to seamlessly integrate with the overall design and style of your property.

                  Energy Efficiency

                    Energy efficiency is a key consideration in today's environmentally conscious world. The HLC-22-82 elevator is designed to help reduce your building's carbon footprint. Its efficient motor and lighting systems not only lower energy consumption but also make it a cost-effective and eco-friendly choice.

                      Low Maintenance

                        Proper maintenance is crucial for elevator performance and longevity. The HLC-22-82 elevator is constructed with quality materials and components, which reduce the need for frequent maintenance and repairs. It also boasts accessible service panels and diagnostic tools, ensuring that your elevator operates smoothly for many years to come.

                        Conclusion

                        The HLC-22-82 630kg 8 Passenger Elevator is a premium choice for those looking to enhance the accessibility, style, and value of their buildings. With its ample capacity, advanced safety features, modern technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-22-82 and experience a new level of vertical transportation.
