HLC-22-84 Passenger Elevator
EMI Available
Model: HLC-22-84
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

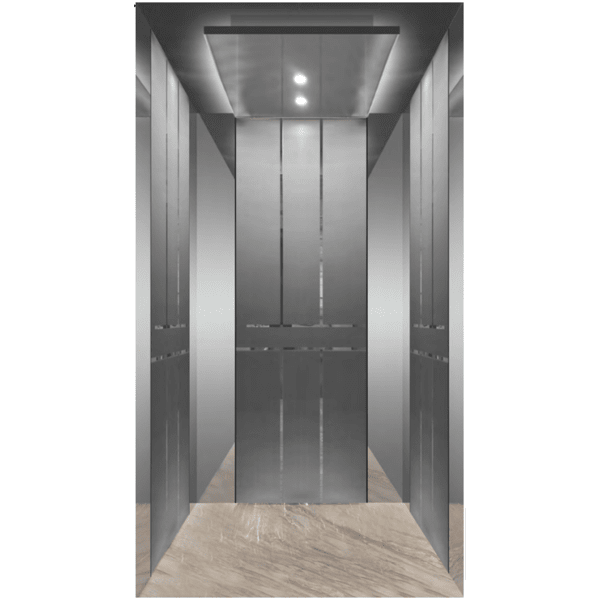

3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

Car Design

Sandblasted Mirror Etching Finish

Car Wall (Front Wall)

Sandblasted Mirror Etching Finish

Car Wall (Side Wall)

Sandblasted Mirror Etching Finish

Car Wall (Real Wall)

Sandblasted Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.




Elevating Your Space with the HLC-2022-84 1000kg 13 Passenger Elevator

Elevators have become an integral part of our modern world, connecting different floors of buildings seamlessly. If you're a property developer, building owner, or architect, you know that selecting the right elevator is pivotal for enhancing accessibility and convenience. The HLC-2022-84 1000kg 13 Passenger Elevator is a game-changing solution designed for larger buildings and elevated transportation needs. In this blog, we will explore the features and benefits of this cutting-edge elevator, designed to take your building to new heights.

    Exceptional Capacity

      One of the most notable features of the HLC-2022-84 elevator is its remarkable capacity. With the ability to accommodate up to 13 passengers or a maximum weight of 1000 kilograms, it is the ideal choice for buildings with heavy foot traffic or those needing to transport larger groups efficiently and comfortably.

        Safety First

          Safety remains a top priority when it comes to elevators, and the HLC-2022-84 elevator is no exception. Equipped with advanced safety features, it provides passengers with a sense of security during their vertical journey. Some of the safety features include:

          • Emergency stop buttons for immediate halting in case of any issues.
          • Overload protection to prevent exceeding the weight limit.
          • Fire-rated landing doors to enhance fire safety.
          • Safety interlocks that ensure the doors open only when the elevator is at the designated floor.

          The HLC-2022-84 elevator is designed for reliability and durability, minimizing breakdowns and the associated inconvenience and maintenance costs.

            Cutting-Edge Technology

              This elevator is equipped with state-of-the-art technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on the elevator's components. In addition, LED lighting and a digital floor display contribute to a modern and stylish aesthetic, leaving a lasting impression on both occupants and visitors.

                Customization Options

                  Every building has its unique characteristics, and the HLC-2022-84 elevator offers extensive customization options. You can choose cabin finishes, materials, and color schemes that align with your building's aesthetics. This level of customization allows your elevator to seamlessly integrate with the overall design and style of your property.

                    Energy Efficiency

                      In today's environmentally conscious world, energy efficiency is a critical consideration. The HLC-2022-84 elevator is designed to help reduce your building's carbon footprint. Its efficient motor and lighting systems not only lower energy consumption but also make it a cost-effective and eco-friendly choice, saving on operational costs over time.

                      Low Maintenance

                        Proper maintenance is crucial for elevator performance and longevity. The HLC-2022-84 elevator is constructed with quality materials and components, reducing the need for frequent maintenance and repairs. Accessible service panels and diagnostic tools further simplify maintenance procedures, ensuring the elevator operates smoothly for many years to come.

                        Conclusion

                        The HLC-2022-84 1000kg 13 Passenger Elevator is a top-tier choice for those looking to enhance the accessibility, style, and value of their buildings. With its exceptional capacity, advanced safety features, cutting-edge technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-2022-84 and experience a new level of vertical transportation, creating a safer, more efficient, and more impressive environment for your occupants and guests.
